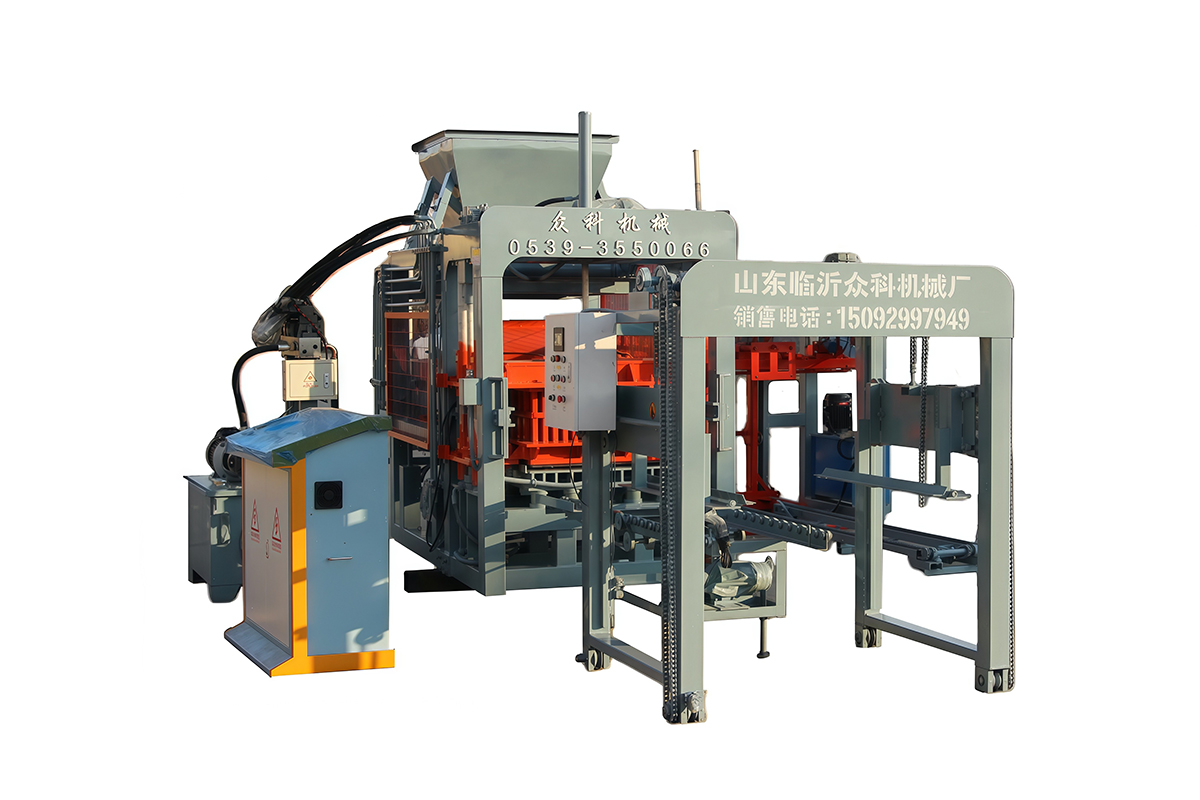

Cement Block Molding Machine With The 4-15 Type Specification (3).jpg
xianqing4-15 (7).jpg
xianqing4-15 (6).jpg
xianqing4-15 (8).jpg

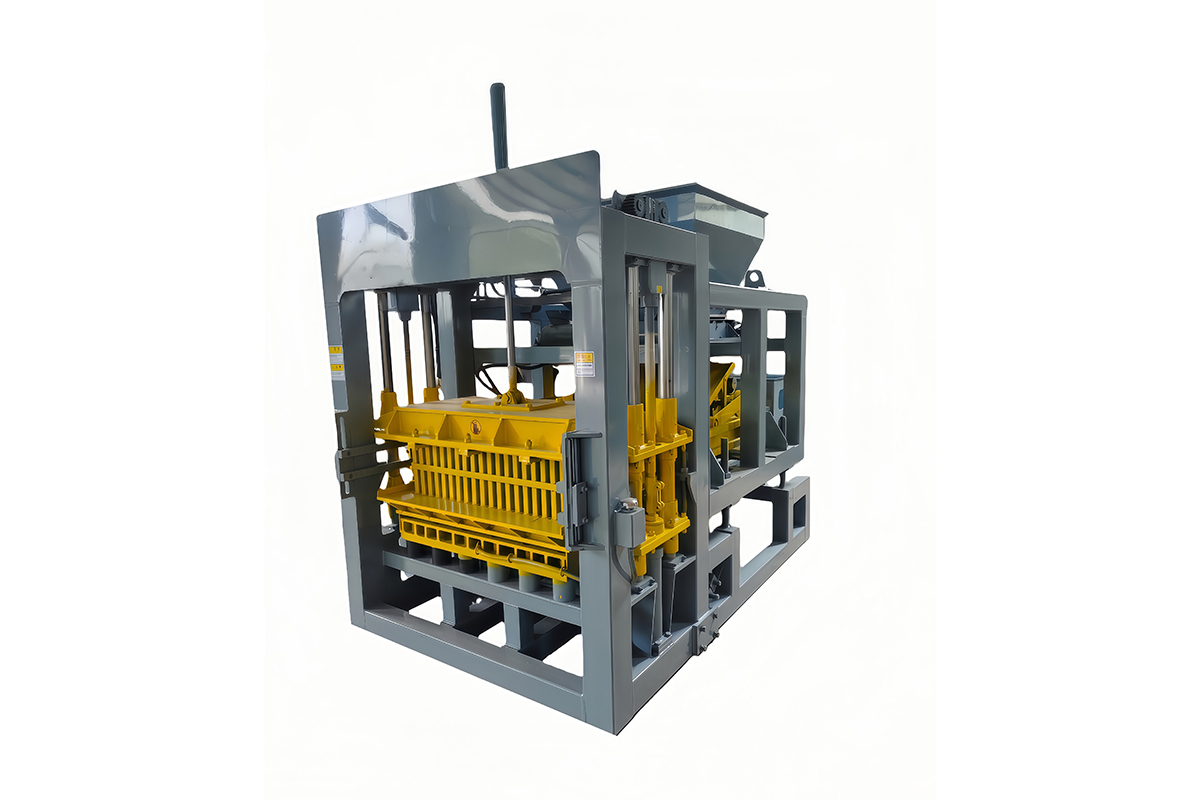

xianqing4-15 (4).jpg
xianqing4-15 (1).jpg
xianqing4-15 (5).jpg
xianqing4-15 (2).jpg
xianqing4-15 (3).jpg

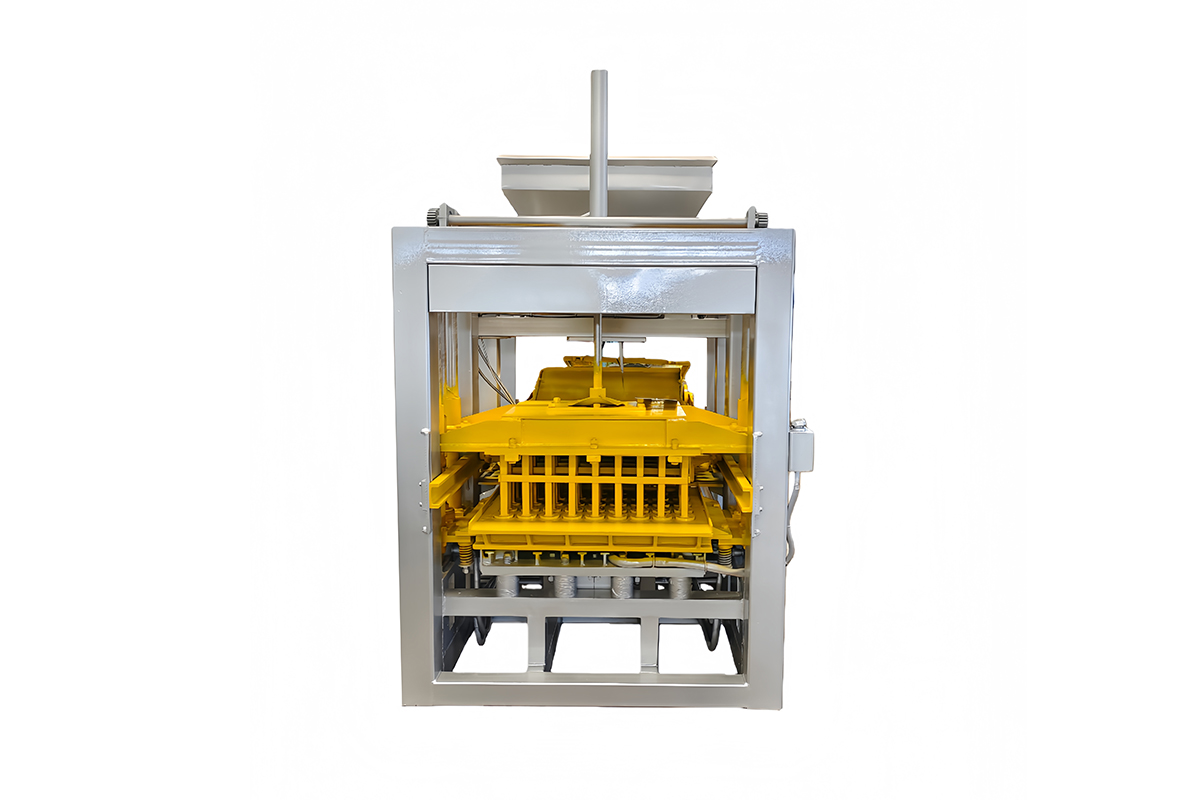

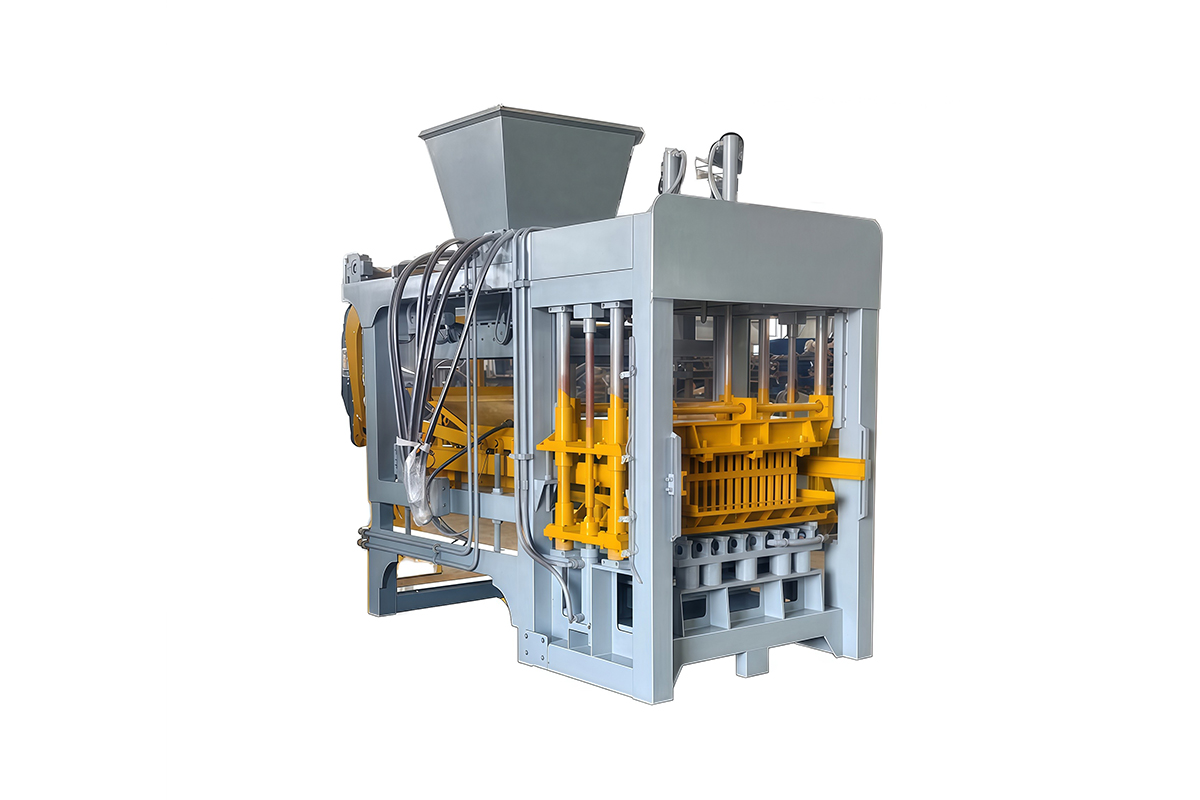

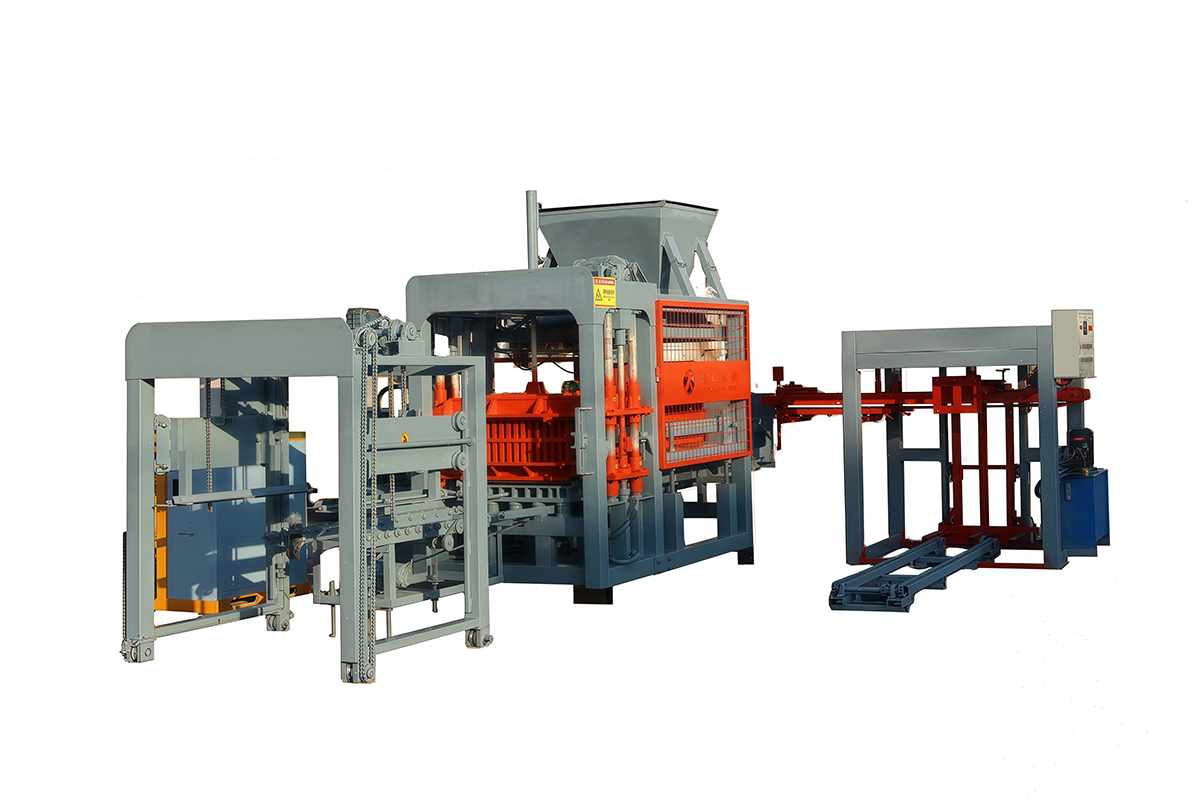

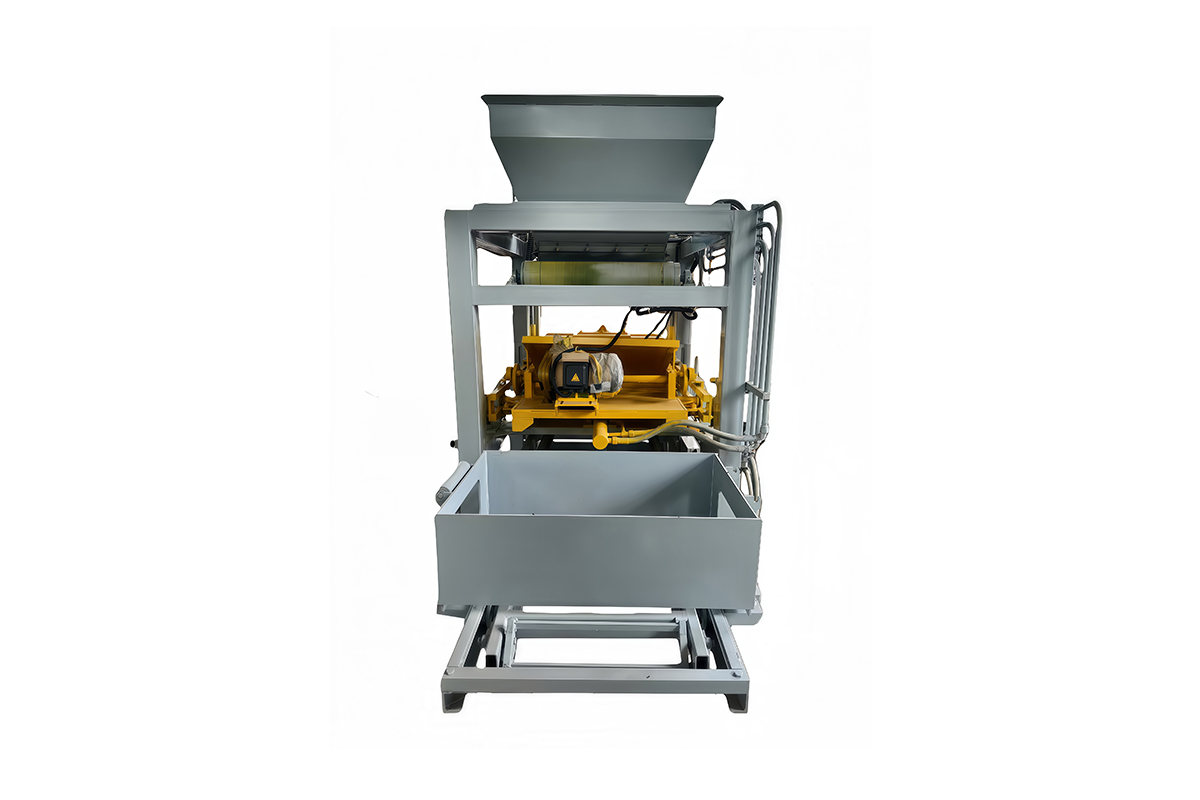

Cement Block Molding Machine With The 4-15 Type Specification

1. Molding adopts upper pressing + lower vibration mode to greatly improve molding efficiency.

2. Product accuracy is enhanced by virtue of precise positioning + PLC intelligent control.

3. The machine is hydraulically driven, with flexible adjustment of actions and speed as required.

4. The electrical control adopts PLC intelligent solution, equipped with a human-machine interface for easy operation.

5. The distributing section uses a suspended skip car combined with forced distributing design to ensure uniform and stable material distribution.

6. The whole machine realizes full-process automated production, achieving significant cost reduction and high-efficiency output increase.

    Contact us
    product details
    product description

    description1

    description2

    Advanced Performance Features

    01

    Hydraulic + Vibration Molding

    The brick machine adopts hydraulic + vibration molding design; the lower vibration is equipped with a high-power motor to significantly enhance vibration force, and the upper mold adopts oil cylinder pressing design for strong and stable downward pressure.
    02

    Precise Height & Dimensional Accuracy

    The finished product height is precisely controlled by the PLC system, with flexible adjustment of precise post-molding time; combined with four-corner fixed positioning, the finished product error is controlled within 2mm, greatly improving the product qualification rate and dimensional accuracy.
    03

    Coordinated Hydraulic Drive System

    The machine is hydraulically driven for actions including mold lifting, skip forward & backward movement and pallet conveying; the hydraulic station uses a gear pump for oil supply to ensure sensitive and coordinated actions, allowing time and speed to be flexibly adjusted for stable machine operation and improved efficiency.
    04

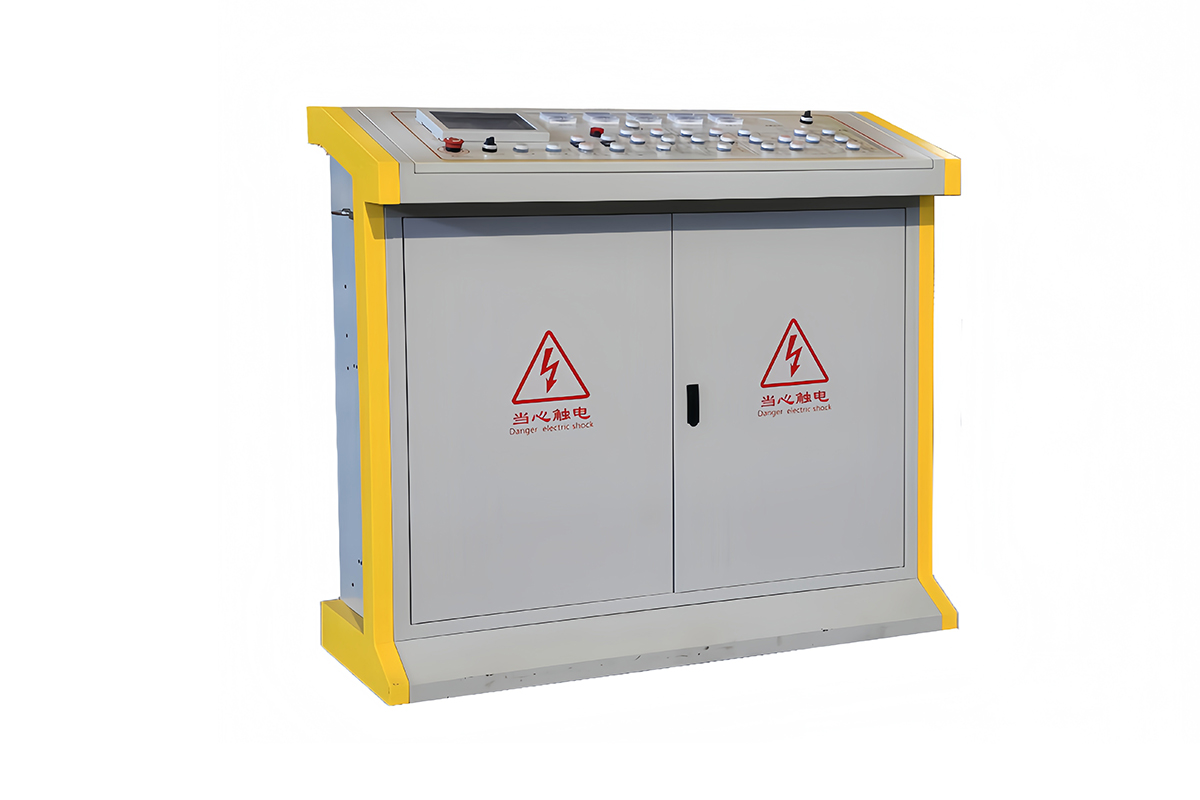

    Intelligent & Efficient Control

    Intelligent control is convenient and efficient: PLC program control + human-machine interface supports auto/manual dual-mode switching; built-in fault self-diagnosis and voice prompt functions enable remote operation, greatly reducing maintenance time and downtime.
    05

    Advanced Suspended Feeding System

    The material feeding system adopts a suspended skip to greatly reduce running resistance for smoother movement; equipped with a forced feeding device, it ensures uniform and sufficient material for each green brick, ensuring consistent compactness and accuracy of bricks.
    06

    Full-Process Automation

    Full-process automation for cost reduction and efficiency improvement: automatic operation of feeding, material distribution, brick discharging and pallet conveying greatly saves labor costs; the equipment’s energy consumption is lower than that of similar products, minimizing overall investment.
    Main technical parameters

    Power List of Components for 4-15 Block Molding Machine

    Serial Number

    Part

    Motor power（kw）

    Quantity

    Total Power（kw）

    Remarks

    1

    Lower mold vibration

    5.5

    2

    11



    2

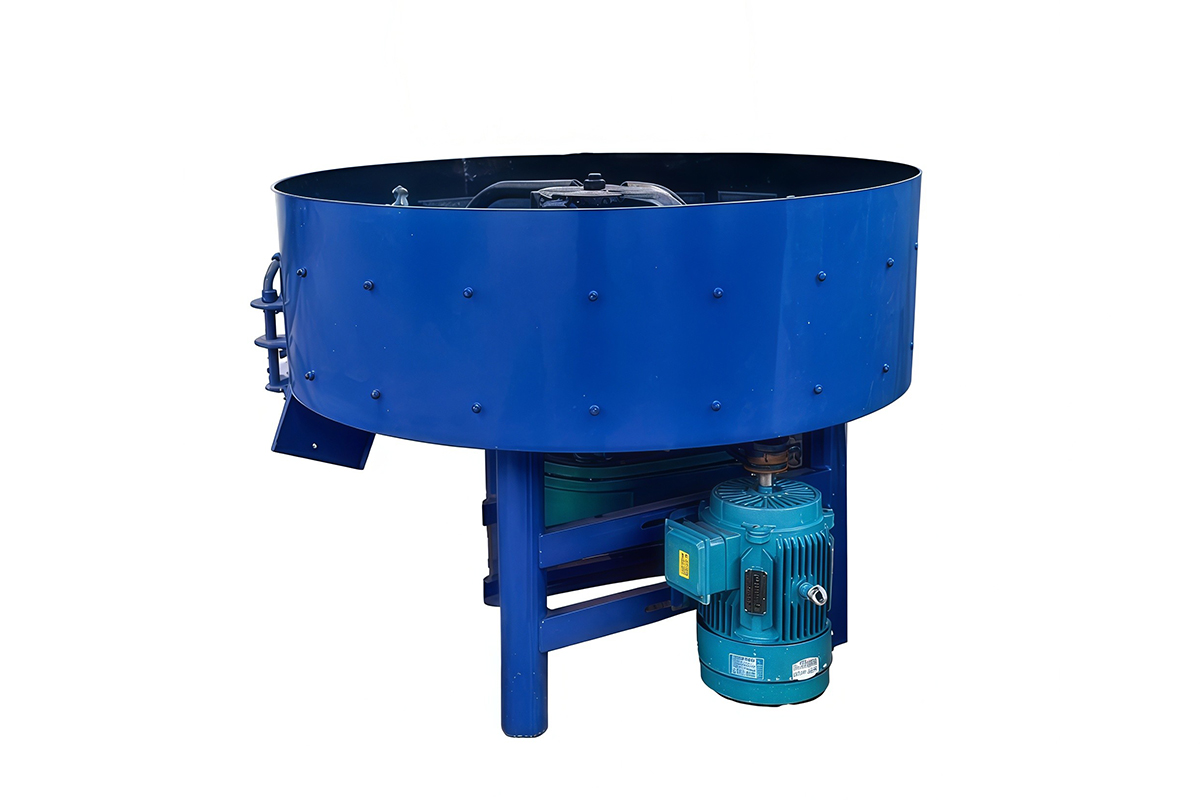

    mixing motor

    3

    1

    3



    3

    Circular Belt Conveyor

    1.5

    1

    1.5



    4

    Hydraulic Oil Station

    11

    1

    11



    5

    Brick Conveyor

    0.75

    1

    0.75



    6

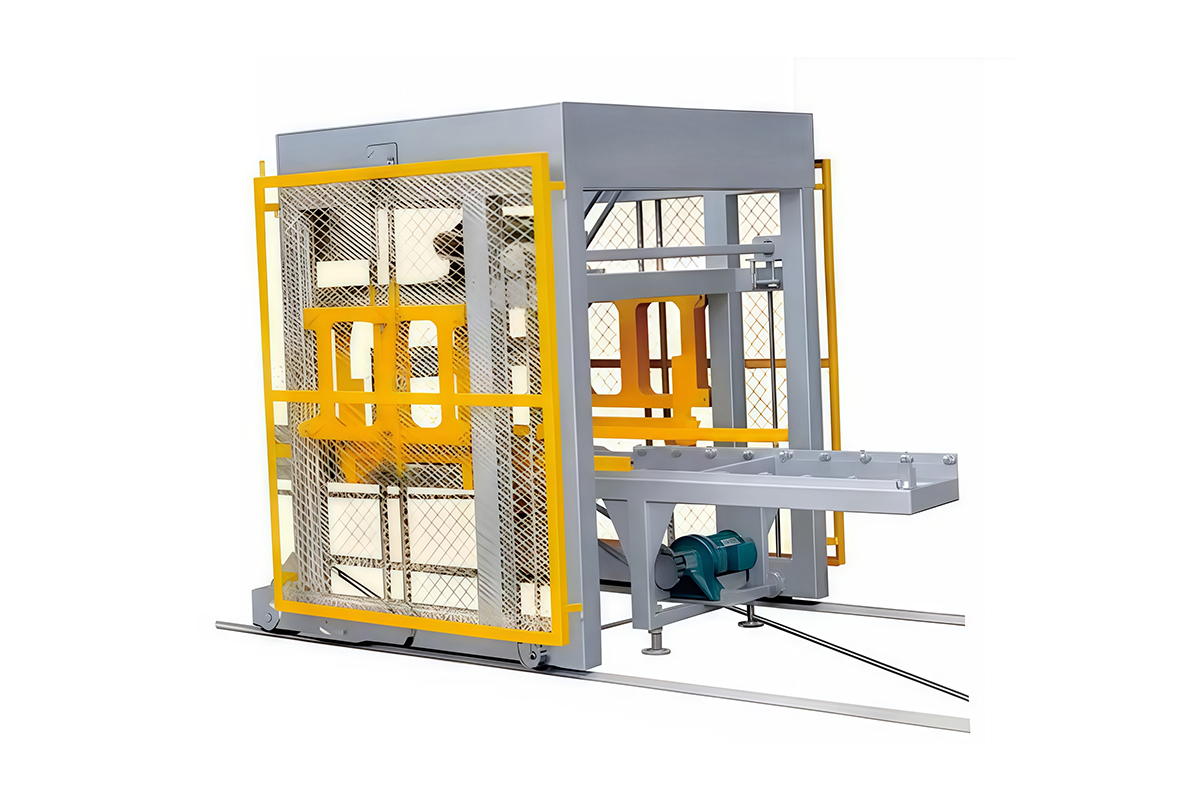

    Stacker Lifting Mechanism

    1.1

    1

    1.1



    7

    Stacker Forward & Retracting Mechanism

    0.75

    1

    0.75



    8

    Board Feeder

    3

    1

    3

    optional

    9

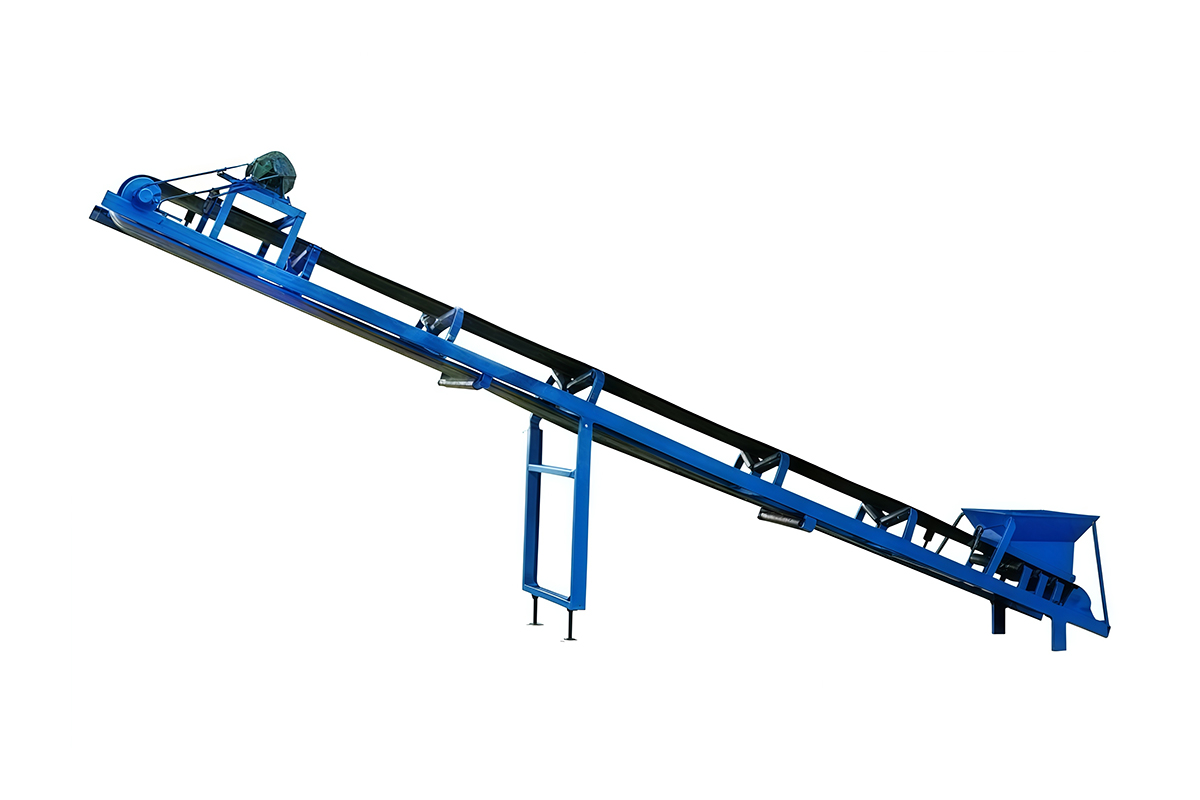

    Belt Conveyor

    1.5

    1

    1.5



    10

    1.8m.Mixer

    15

    1

    15

    optional

    11

    JS500.Compulsory Mixer

    18.5

    1

    18.5

    12

    Mixer Hoist Hopper

    5.5

    1

    5.5

    13

    Water Pump

    1.1

    1

    1.1

    14

    PLD.Two-bin Batching Machine

    4

    2

    8

    optional

    2.2

    1

    2.2

    15

    PLD.Three-bin Batching Machine

    4

    3

    12

    optional

    2.2

    1

    2.2
    4-15 Main Technical Parameters

    Overall Dimension

    3800x1800x2600mm

    Equipment Weight

    4000KG

    Overall Power

    26.45KW

    Molding Cycle

    12-15s

    Pallet Size

    960x550mm

    Mode of vibration

    Vibration Pressurization
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block dsga (1) 400x200×200 4pcs
    Solid Block dsga (2) 240x115x50 30pcs
    Paver Paver 225x112.5x60 12pcs
