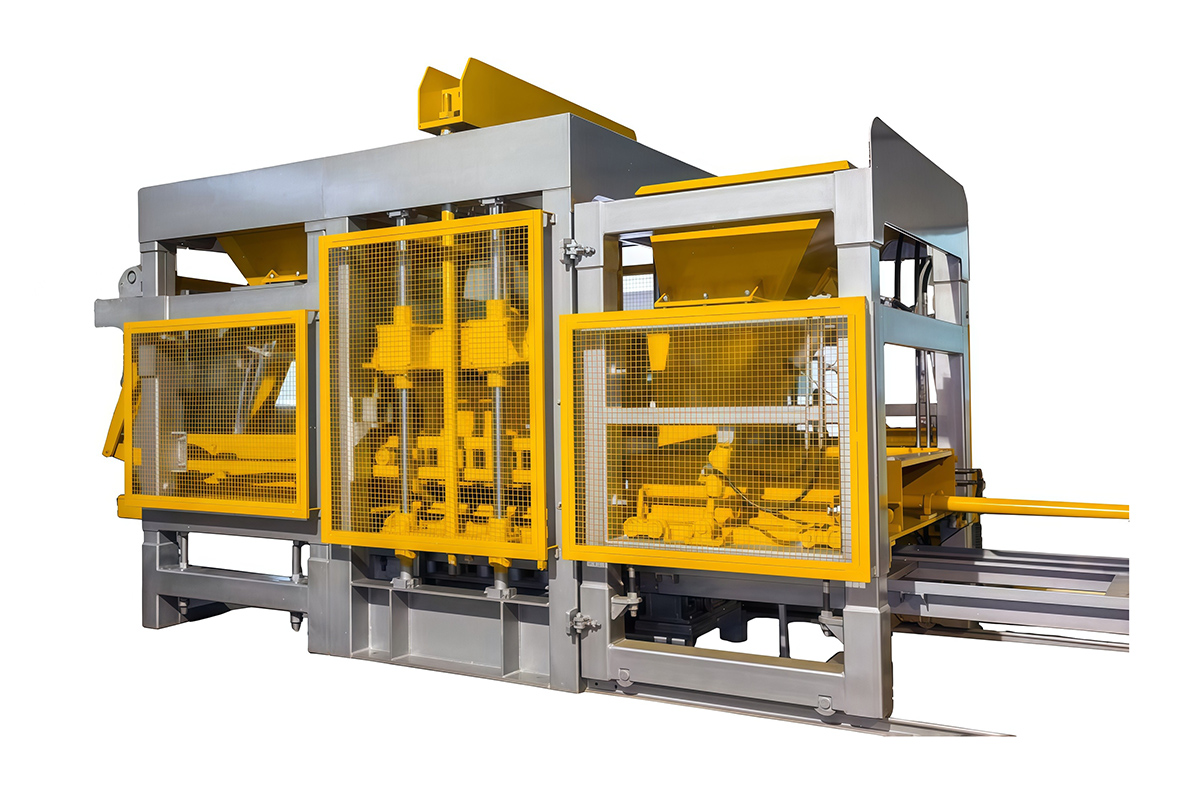

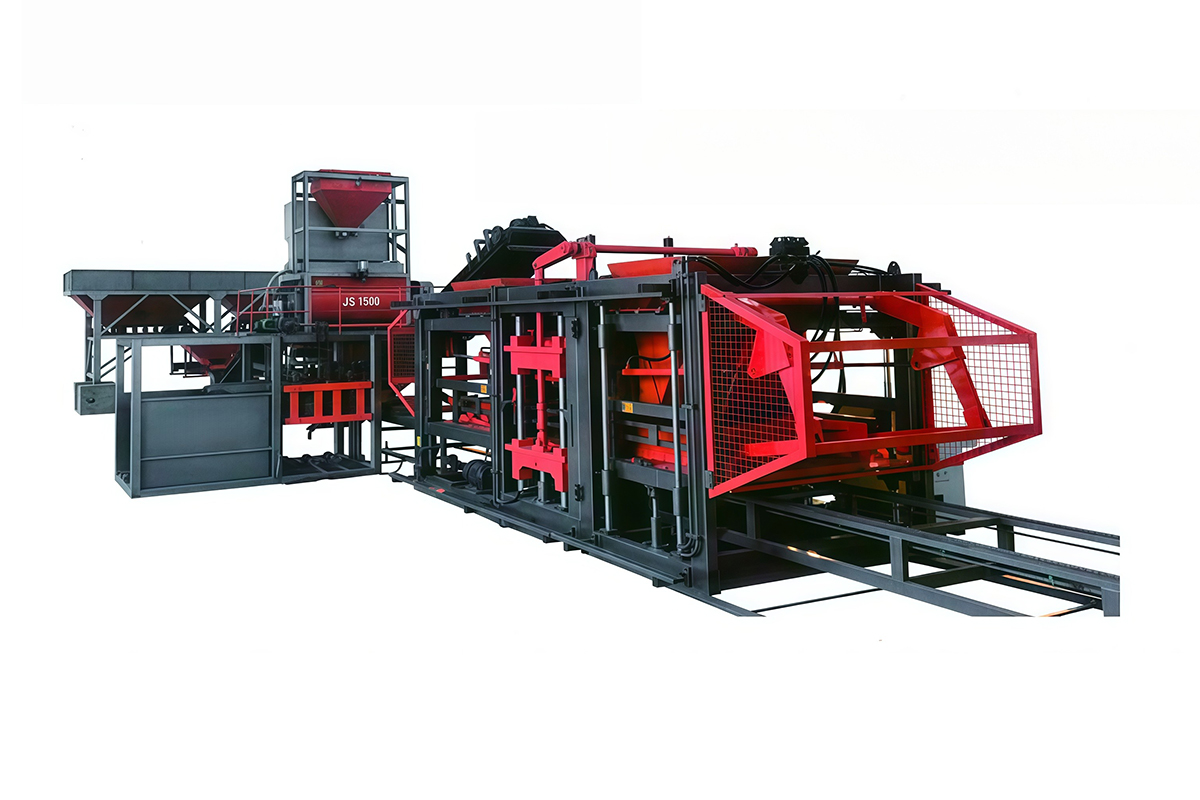

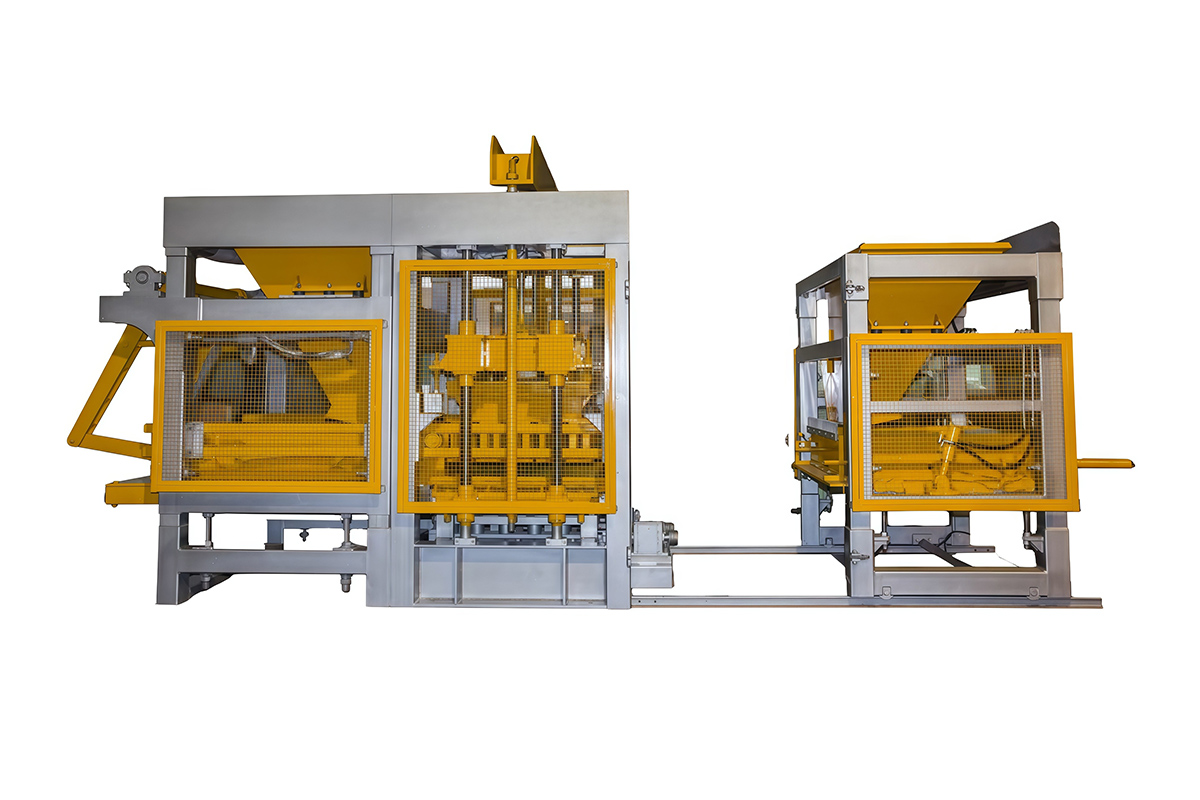

Type 15-15 Automatic Block Molding Machine

High output and efficiency, stable and uninterrupted production capacity.

High-quality products with high precision, meeting strength standards, and low scrap rate.

Intelligent control, simple operation, convenient maintenance, and reduced labor costs.

Robust and durable structure, low failure rate, and long service life.

Multi-functional, adaptable to various brick types and raw materials, offering high flexibility.

Energy-saving and low consumption, resulting in lower operating costs and compliance with environmental protection requirements.

Suitable for large-scale production lines, easy to integrate and expand.

    Contact us
    product details
    product description

    description1

    description2

    Premium Production Technology & Performance

    01

    High-Frequency Vibration & Output

    The table-mounted high-frequency vibration pressing system achieves a molding cycle of only 15-20 seconds per mold, producing 15 hollow bricks per mold. An 8-hour shift yields 20,000-23,000 bricks, far exceeding the output of smaller machines. The variable frequency spindle ensures continuous operation and forced material feeding without waiting, enabling continuous production with no downtime or waste.
    02

    High-Pressure Compaction & Accuracy

    The combined effect of 31.5MPa high pressure and 180KN strong vibration force enables materials to achieve all-round compaction within 2 seconds, resulting in blocks with density and strength of MU10-MU15. The heavy-duty frame ensures error is ≤±1mm, producing blocks with precise dimensions and no defects. It can also be adapted to a secondary material feeding device for high-value permeable bricks.
    03

    Intelligent PLC & Visual Control

    Equipped with a PLC and color touchscreen, parameters are visually adjustable. Supports parameter storage and retrieval, with built-in fault self-diagnosis and action self-locking functions. This eliminates the need for professional maintenance and shortens downtime. The entire process is fully automated, requiring only 2-3 people, greatly reducing manual labor.
    04

    Robust Structure & Hydraulic Stability

    The frame adopts a thick-walled square tube integral welding process with a low center of gravity (486mm), transferring 90% of residual vibration to the ground. The hydraulic system adopts a proportional valve + variable pump configuration with oil temperature cooling and high-pressure resistant seals to ensure stable oil temperature and zero leakage for long-term continuous production.
    05

    Flexibility & Environmental Compliance

    By simply changing molds, it is possible to switch between producing hollow blocks, curb stones, grass pavers, and permeable bricks. Raw material compatibility is wide (fly ash, slag, construction waste), with a waste utilization rate over 90%. This complies with environmental policies and allows for potential policy subsidies, improving business revenue.
    06

    Optimized Energy & Smart Integration

    Variable frequency speed control outputs power on demand, with an installed power of 64kW, making energy consumption significantly lower than traditional models. The modular design allows seamless integration with automatic batching, mixers, and automatic palletizers to build a fully automated production line for large-scale upgrades.
    07

    Future-Ready Expansion Capability

    The equipment layout is standardized and has reserved expansion interfaces. In the future, supporting equipment can be flexibly added according to the production capacity demand without replacing the main unit, which reduces the investment cost of brick factory capacity upgrade for long-term large-scale development plans.
    Main technical parameters

    Power table of various components of 15-15 brick making machine

    Serial Number

    Part

    Motor power (kW)

    quantity

    Total power

    Remark

    1

    Lower mold vibration

    11

    4

    44



    2

    mixing motor

    5.5

    2

    11



    3

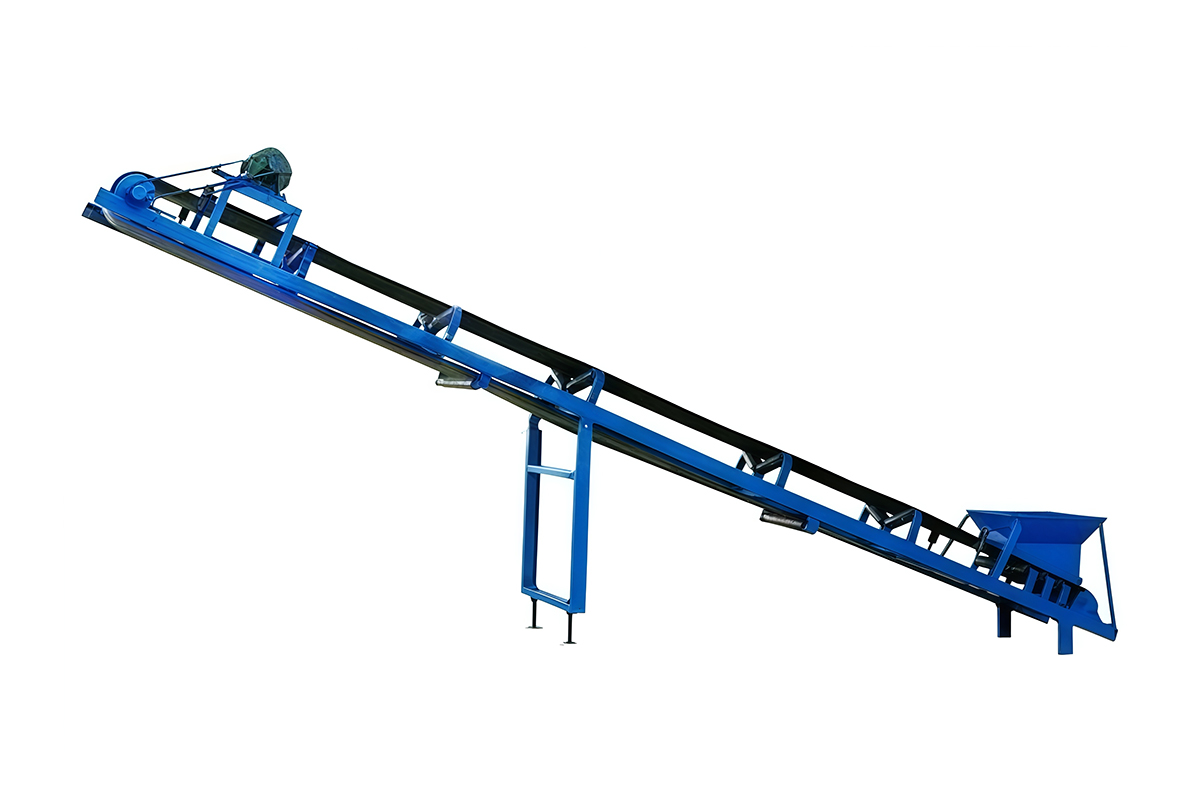

    Annular belt

    3

    1

    3



    4

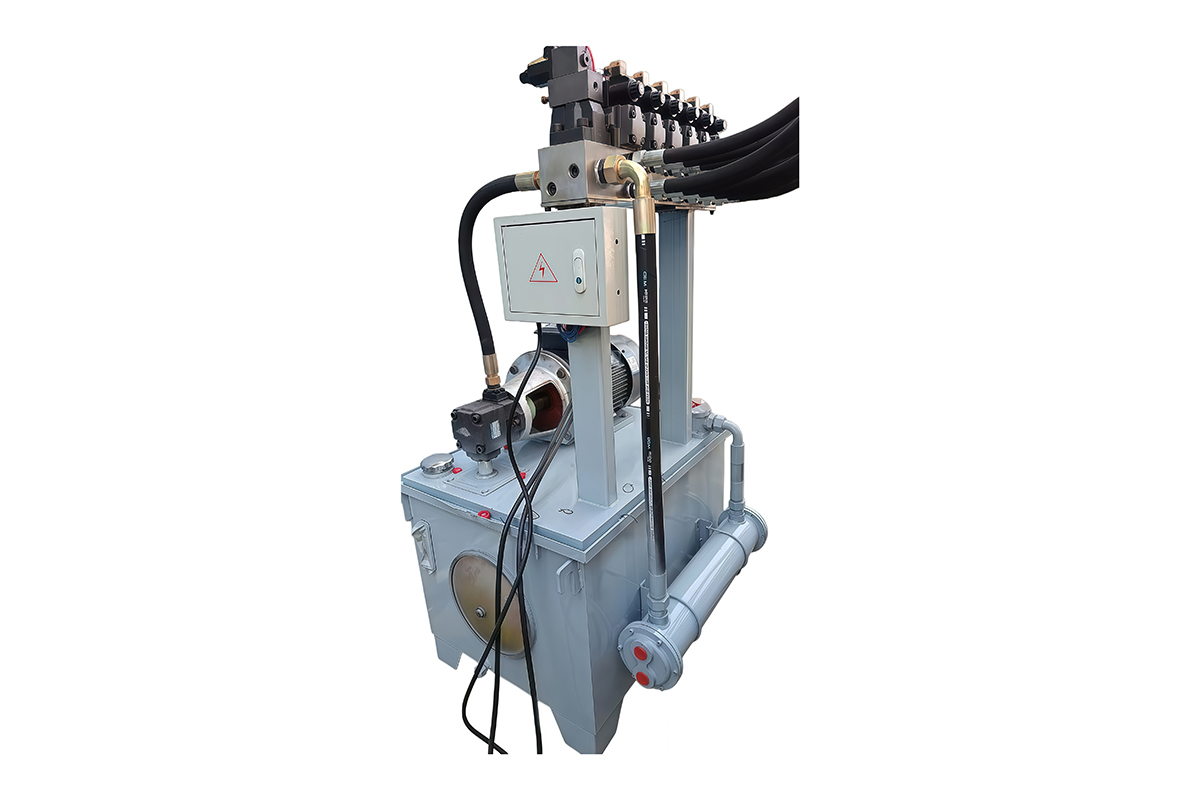

    Hydraulic oil station

    30

    1

    30



    5

    Brick Conveyor

    3

    1

    3



    6

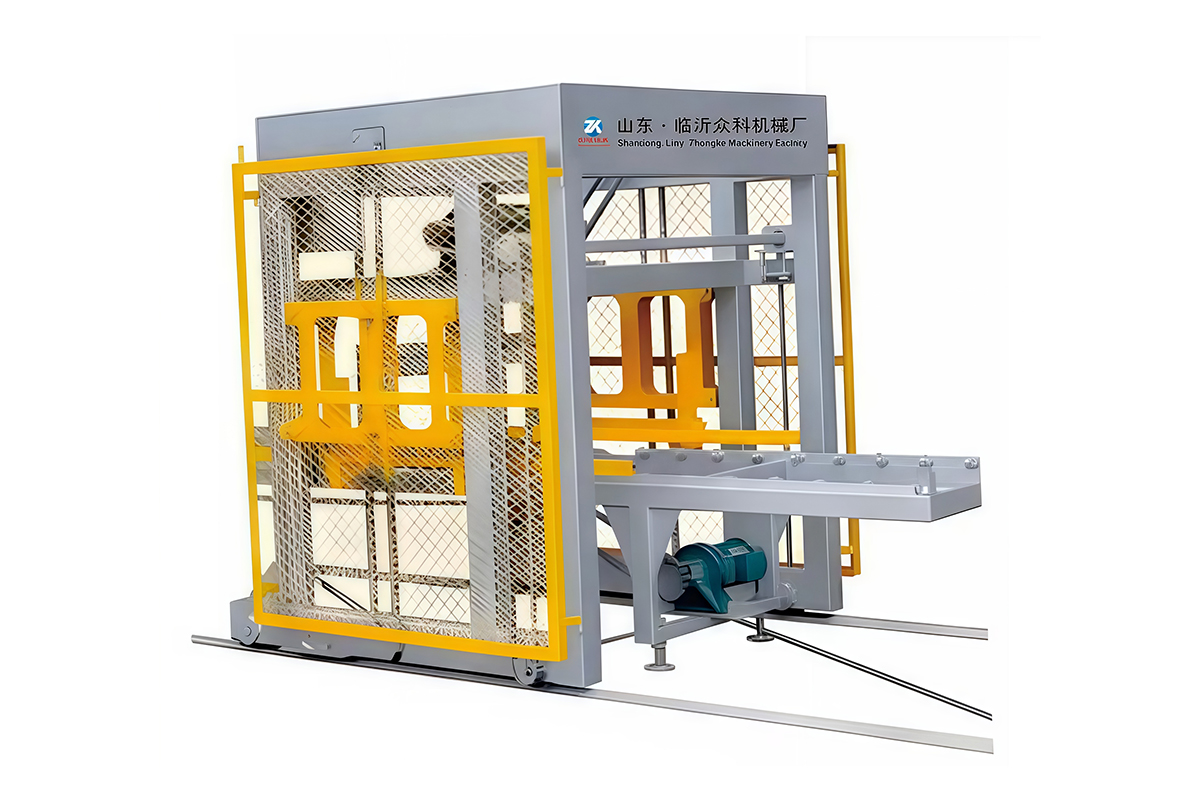

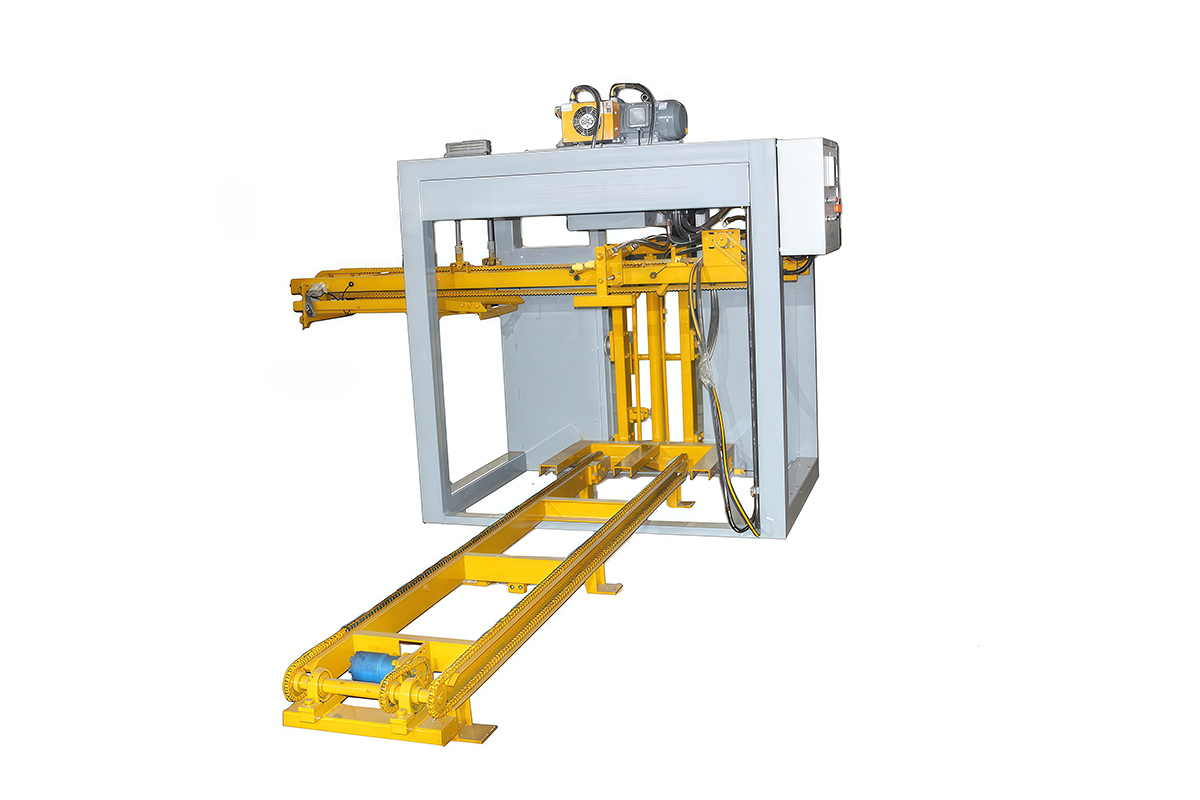

    Stacking machine rises and falls

    4

    1

    4



    7

    Stacking machine forward and backward

    2.2

    1

    2.2



    8

    loading machine

    5.5

    1

    5.5



    9

    conveyor

    5.5

    1

    5.5



    10

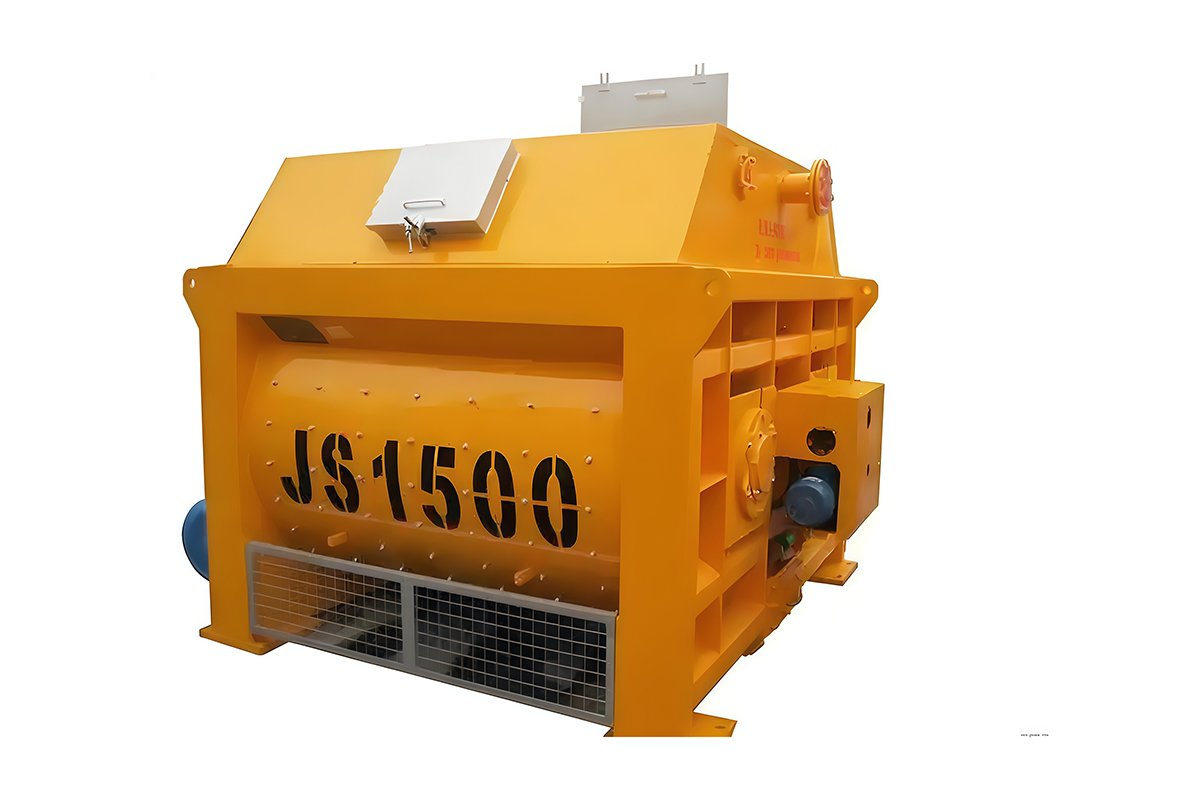

    JS1500 Forced Mixer

    22.5

    2

    45



    11

    Mixer lifting hopper

    15

    1

    15

    12

    water pump

    3

    1

    3

    13

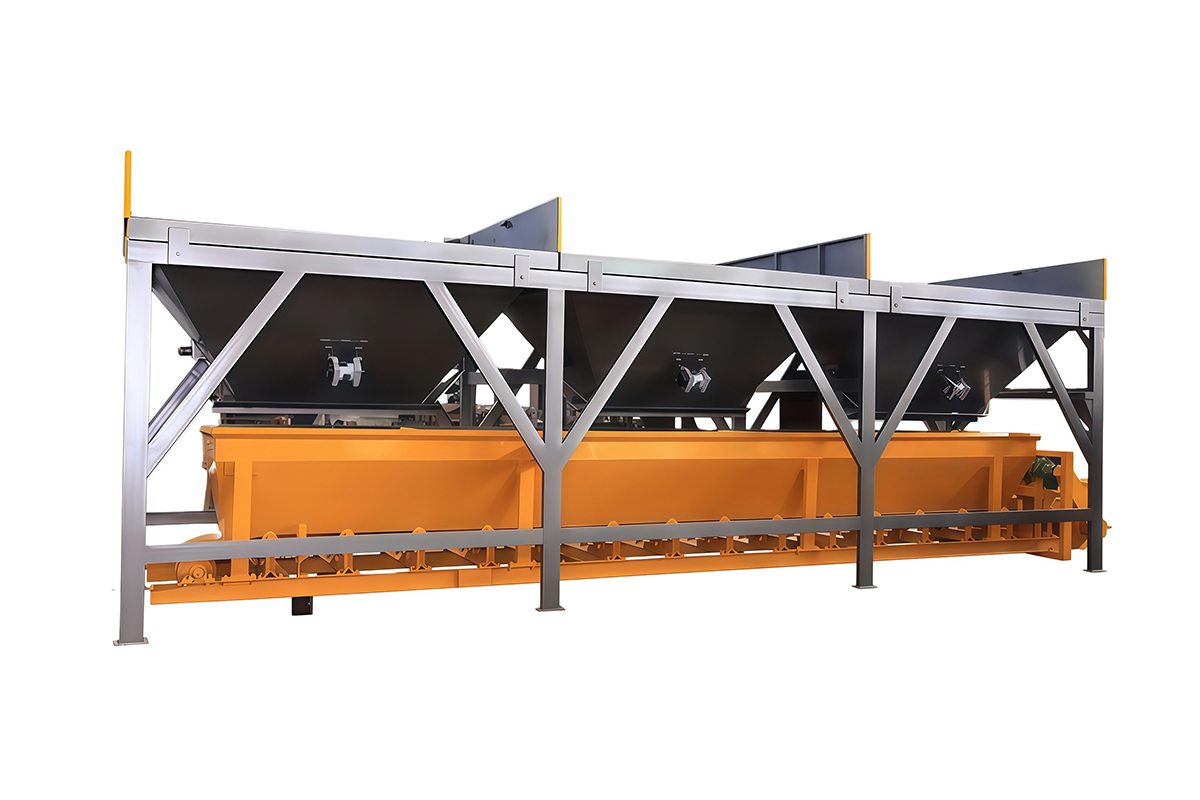

    PLD1600 Three-Compartment Batching Machine

    4

    3

    12

    Optional

    3

    1

    3

    14

    PLD2400 Three-Compartment Batching Machine

    5.5

    3

    16.5

    Optional

    4

    1

    4
    15-15 Main Technical Parameters

    Overall Dimension

    8500x2300x2800mm

    Equipment Weight

    16500KG

    Overall Power

    75.8KW

    Molding Cycle

    15-18s

    Pallet Size

    1350x1100mm

    Mode of vibration

    Vibration Pressurization
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block ayghaehb 400x200x200 15pcs
    Grass Brick aehqae (1) 300x300x60 12pcs
    Paver aehqae (2) 200x100x60 60pcs
