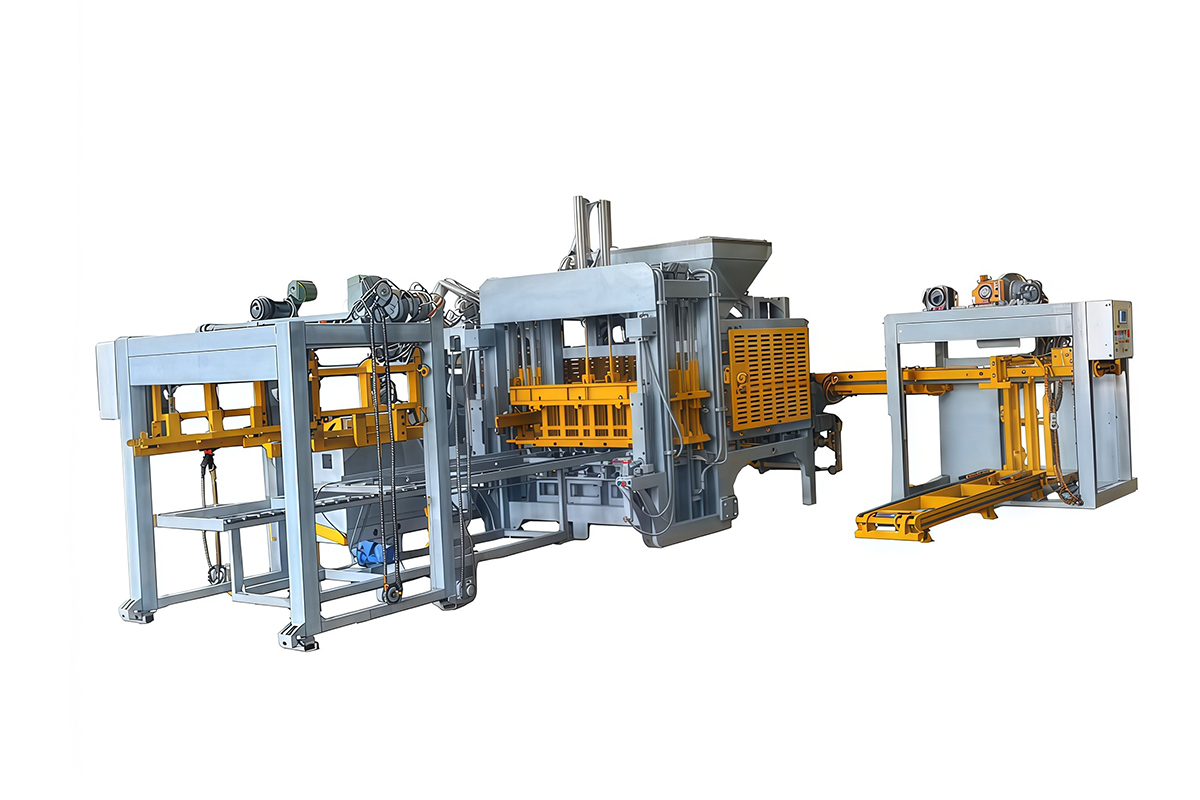

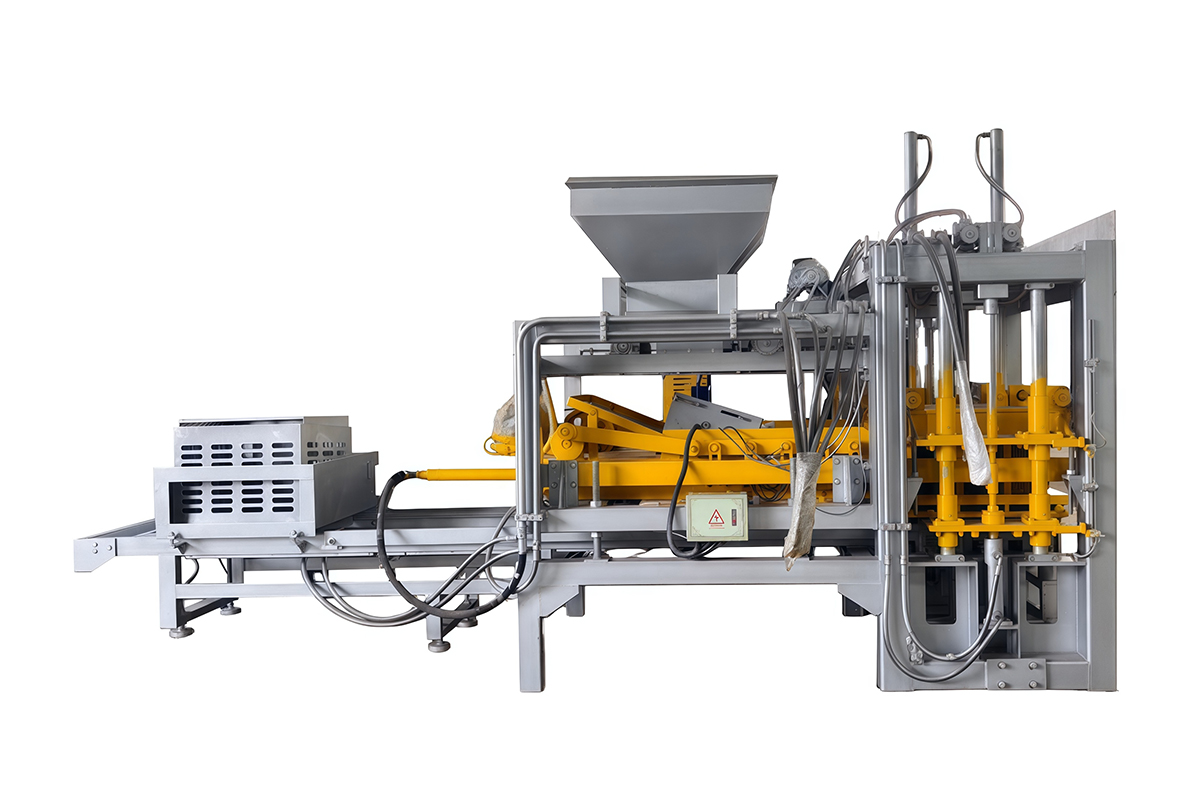

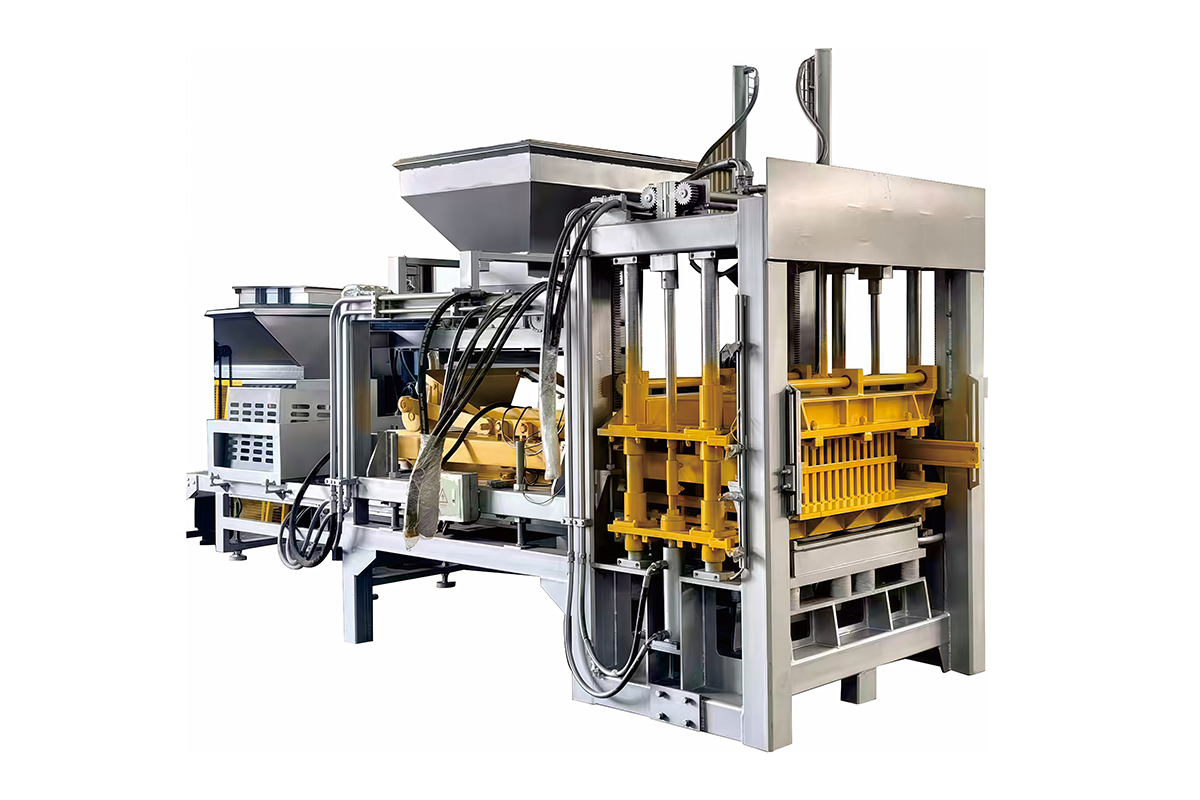

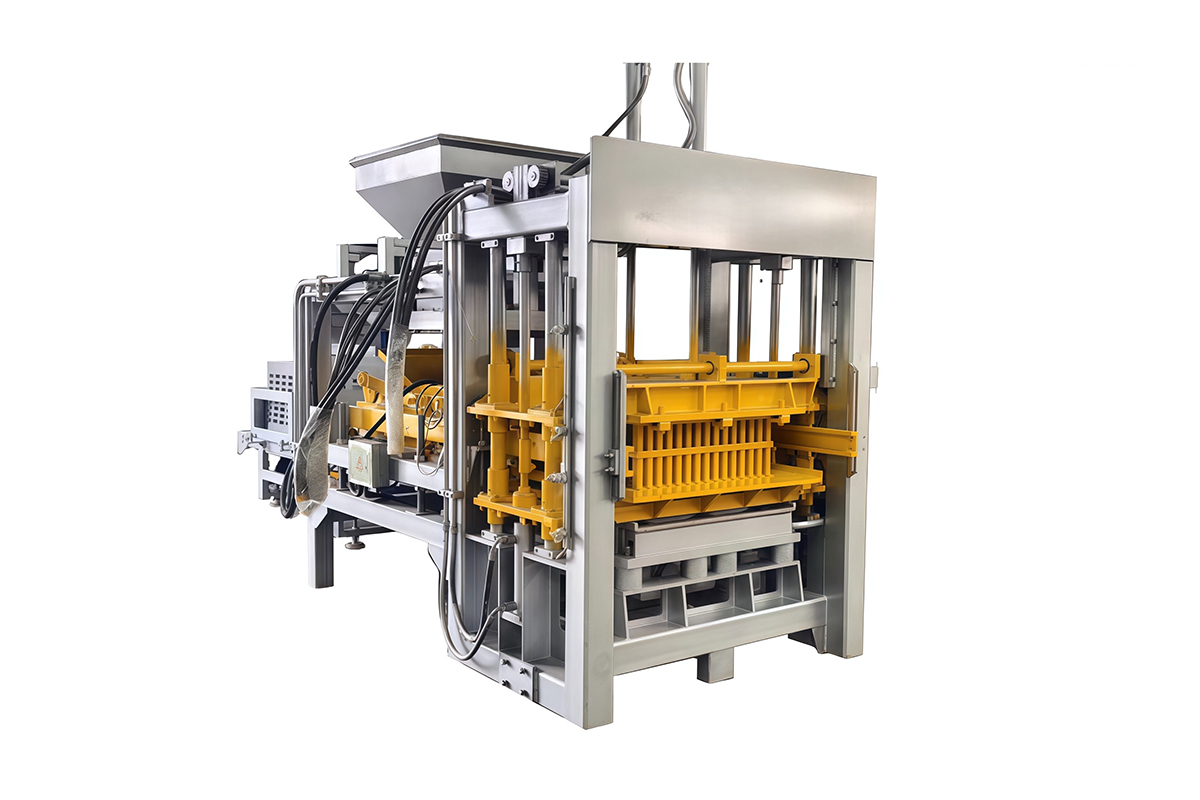

7-15 Type Hydraulic Fully Automatic Block Molding Machine

1. High-efficiency production capacity, capable of stably meeting the supply demands of large-scale engineering projects.

2. Optimized and upgraded mechanical structure, robust and reliable, with powerful performance.

3. High strength and dimensional accuracy of finished products, consistently maintaining a high pass rate.

4. Short investment payback period.

5. Wide range of applications, adaptable to diverse production and engineering needs.

    Contact us
    product details
    product description

    description1

    description2

    High-Yield Production Performance

    01

    Core High-Yield Capacity

    Leading production capacity: with a molding cycle of 15-20 seconds per mold, a single mold produces 27 standard bread bricks, and the production capacity reaches 30,000-40,000 bricks in 8 hours. It can efficiently undertake large-volume standardized orders such as municipal engineering and road renovation, and the supply efficiency is more guaranteed.
    02

    High-Load Continuous Stability

    The frame is reinforced and welded with high-strength steel, the hydraulic system has a rated pressure of 21MPa, and it is equipped with a high-power vibration motor. Combined with the table mold synchronous vibration and pressing technology, it achieves more uniform vibration and pressing, effectively reducing the frequency of downtime maintenance and losses.
    03

    Superior Density & Accuracy

    Ensures more complete air release and higher density, with compressive strength ≥15MPa and excellent consistency. Dimensional errors are controlled within ≤1mm, and the molded bricks are free of defects such as missing corners or chipped edges, fully meeting the high standards of municipal engineering.
    04

    Efficient Scaling & ROI

    The upgraded material hopper capacity and forced material distribution eliminate material shortages at the source. The product's cost-effectiveness is highly suitable for large-scale production, with the increase in production capacity far exceeding the increase in investment. The payback period is short, and the overall economic benefits are significant.
    05

    Universal Scenario Adaptability

    Continuing the core design of multi-purpose machines, it can produce all types of conventional bricks, such as colored bricks, permeable bricks, grass pavers, and curb stones, simply by changing the mold. It accommodates both large-scale standardized production and personalized orders, making it the core preferred model for building material manufacturers and municipal suppliers.
    Main technical parameters

    7-15 Type Hydraulic Fully Automatic Block Molding Machine

    Serial Number

    Part

    Motor power (kW)

    quantity

    Total power

    Remark

    1

    Lower mold vibration

    11

    2

    22



    2

    mixing motor

    4

    1

    4



    3

    Annular belt

    1.5

    1

    1.5



    4

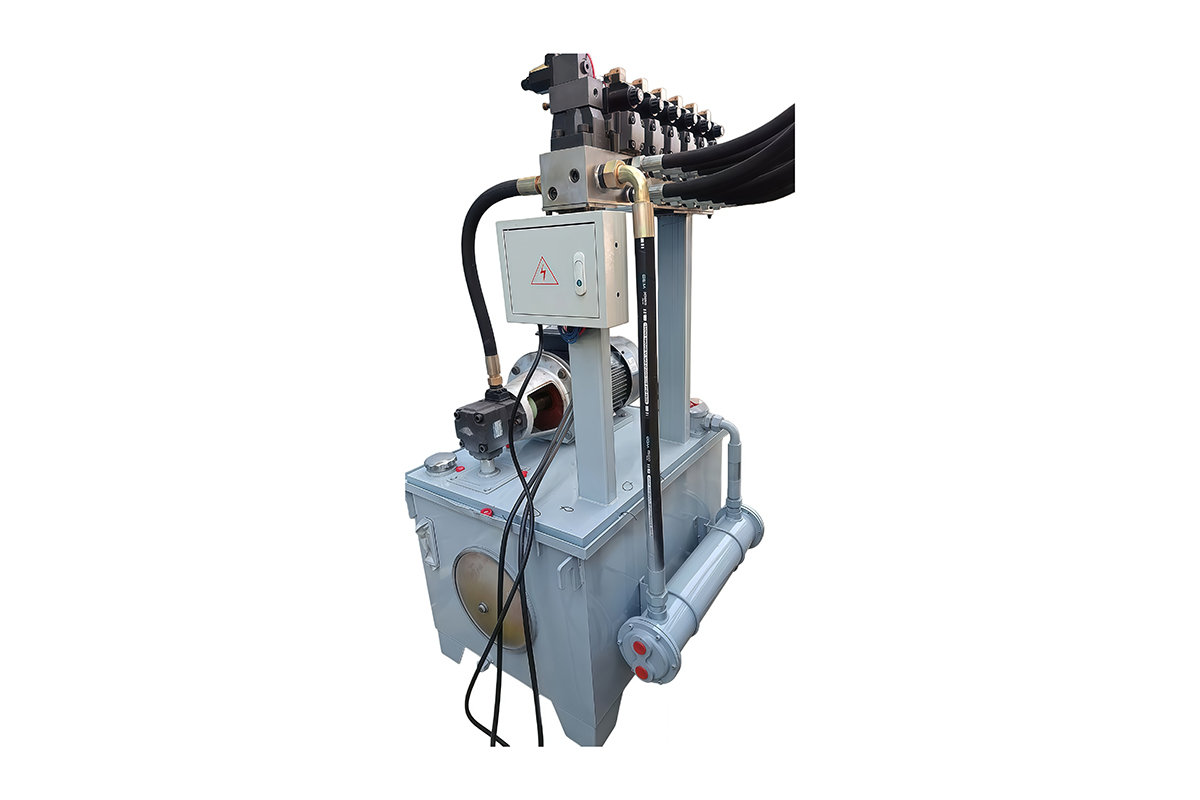

    Hydraulic oil station

    15

    1

    15



    5

    Brick Conveyor

    1.5

    1

    1.5



    6

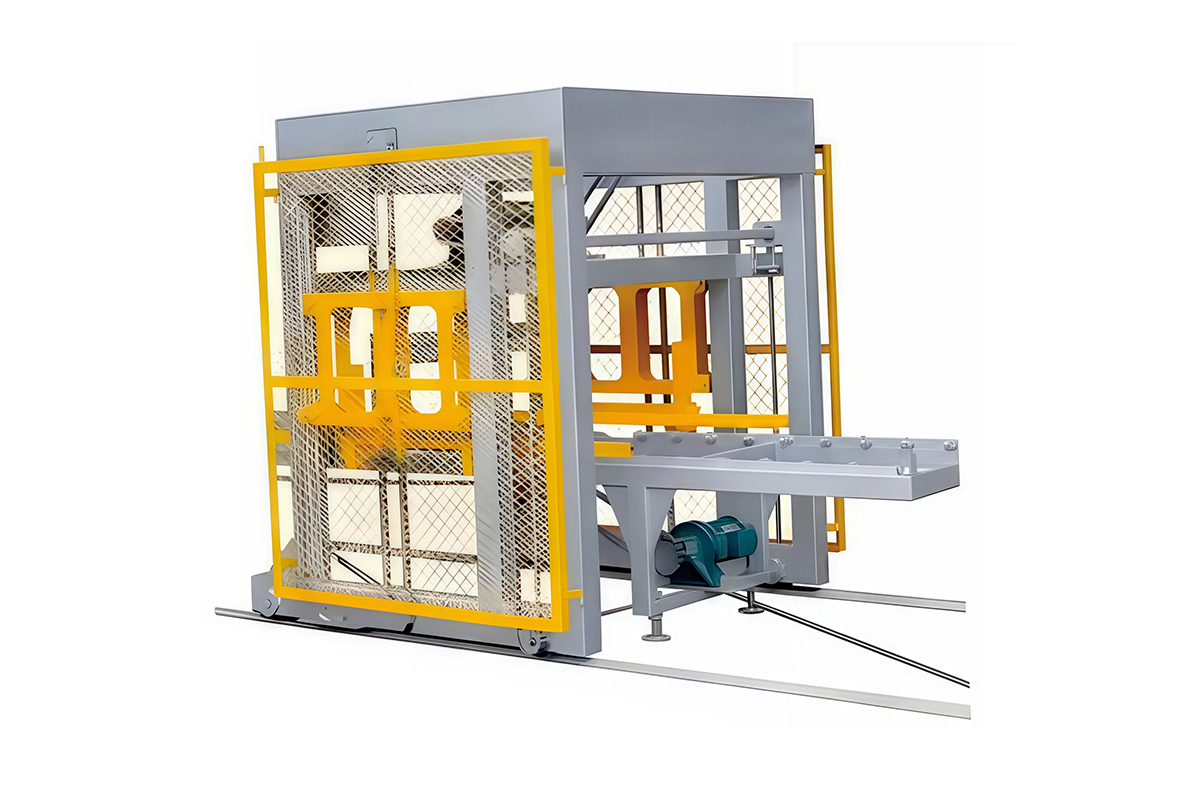

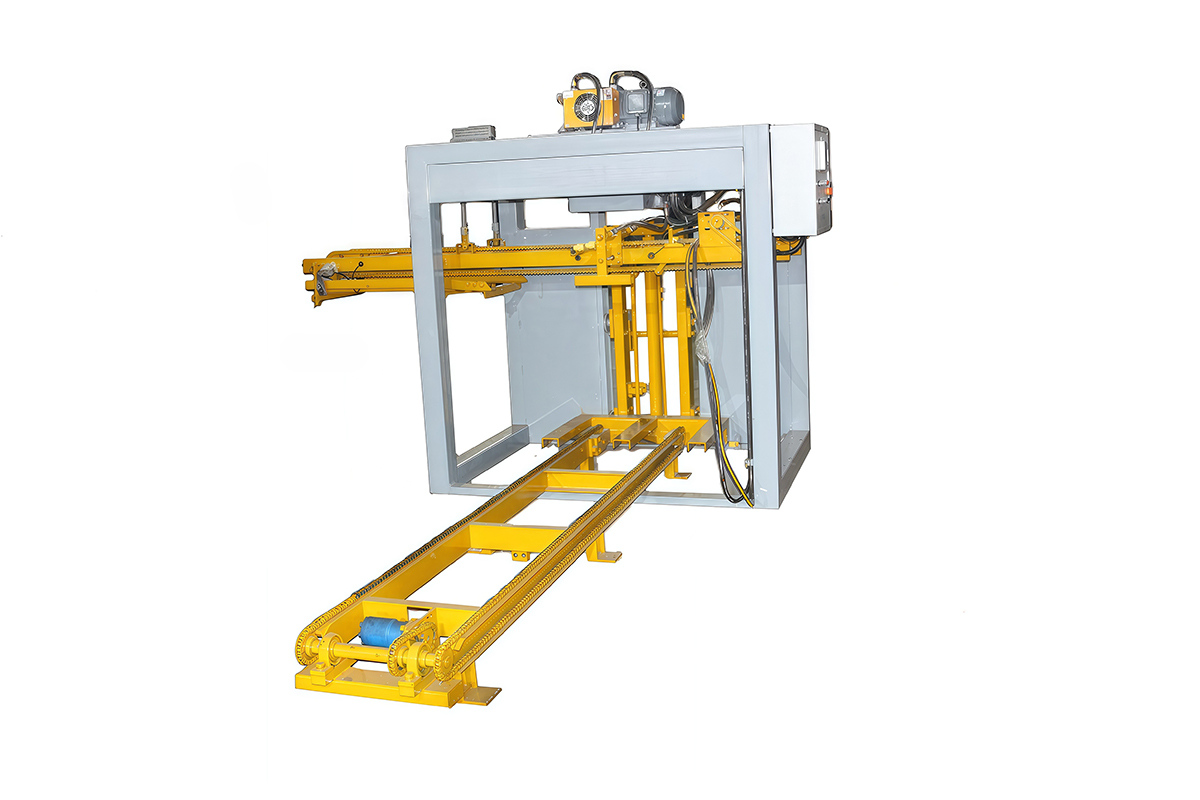

    Stacking machine rises and falls

    2.2

    1

    2.2



    7

    Stacking machine forward and backward

    1.5

    1

    1.5



    8

    loading machine

    4

    1

    4

    Optional

    9

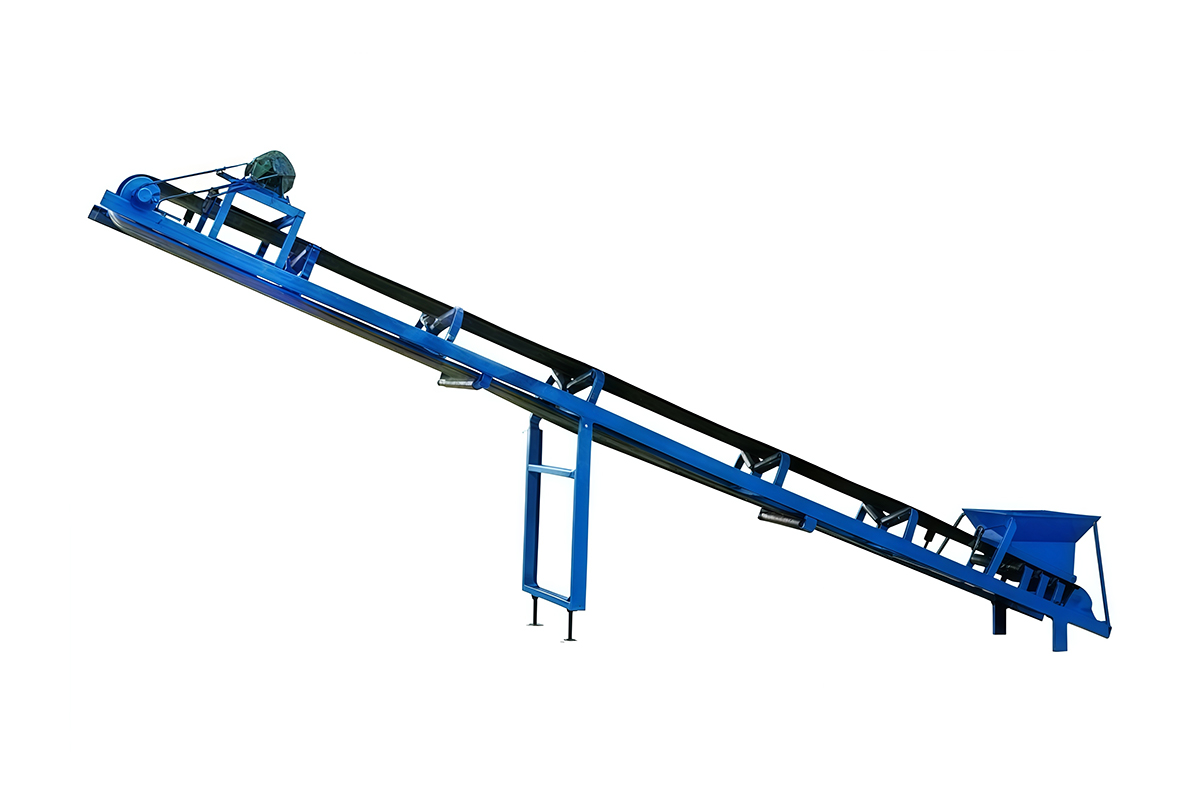

    conveyor

    3

    1

    3



    10

    JS500 Forced Mixer

    18.5

    1

    18.5

    Optional

    11

    Mixer lifting hopper

    5.5

    1

    5.5

    12

    water pump

    1.1

    1

    1.1

    13

    JS750 Forced Mixer

    30

    1

    30

    Optional

    14

    Mixer lifting hopper

    7.5

    1

    7.5

    15

    water pump

    2.2

    1

    2.2

    16

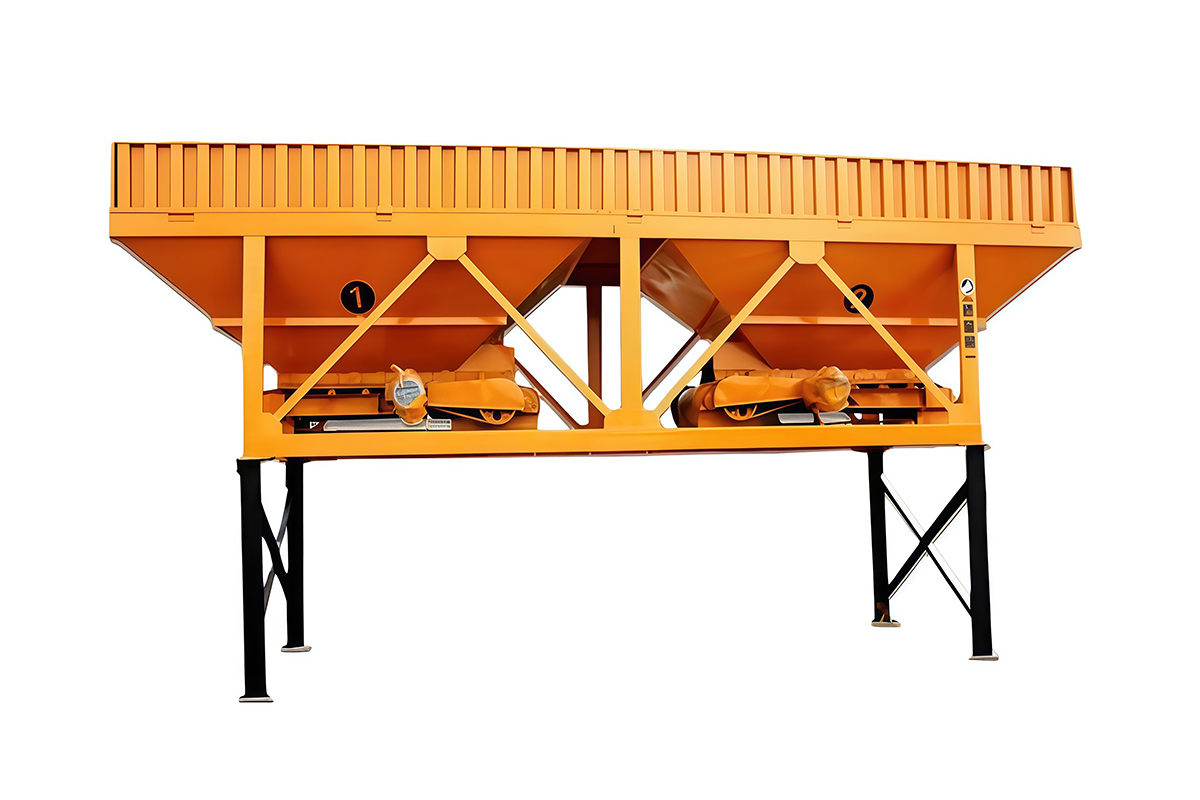

    PLD Two-Compartment Batching Machine

    4

    2

    8

    Optional

    2.2

    1

    2.2

    17

    PLD Three-Compartment Batching Machine

    4

    3

    12

    Optional

    2.2

    1

    2.2
    7-15 Main Technical Parameters

    Overall Dimension

    6200x2000x2600mm

    Equipment Weight

    7500KG

    Overall Power

    34.5KW

    Molding Cycle

    15-20s

    Pallet Size

    1150x750mm

    Mode of vibration

    Vibration Pressurization
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block ayghaehb 400x200x200 7pcs
    Kerbstone xiaiegnq (2) 1000x150x300 2pcs
    Paver xiaiegnq (1) 150x300x60 12pcs
