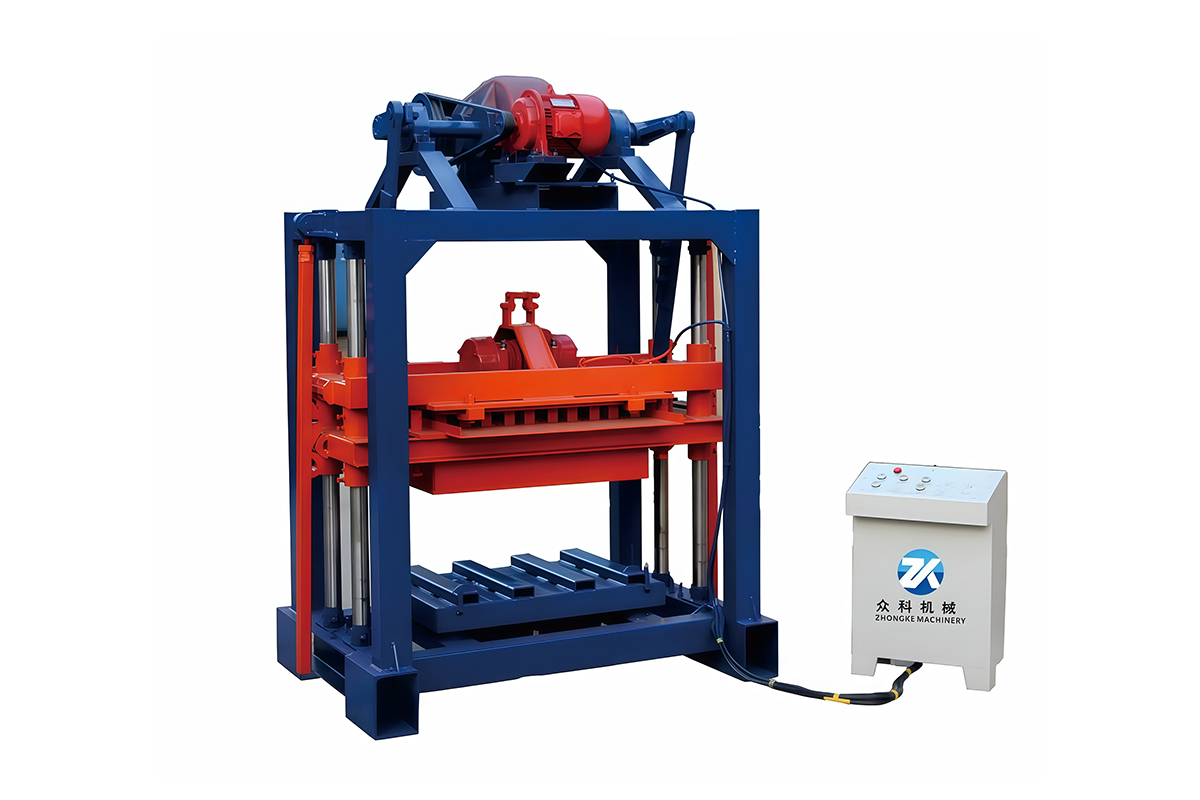

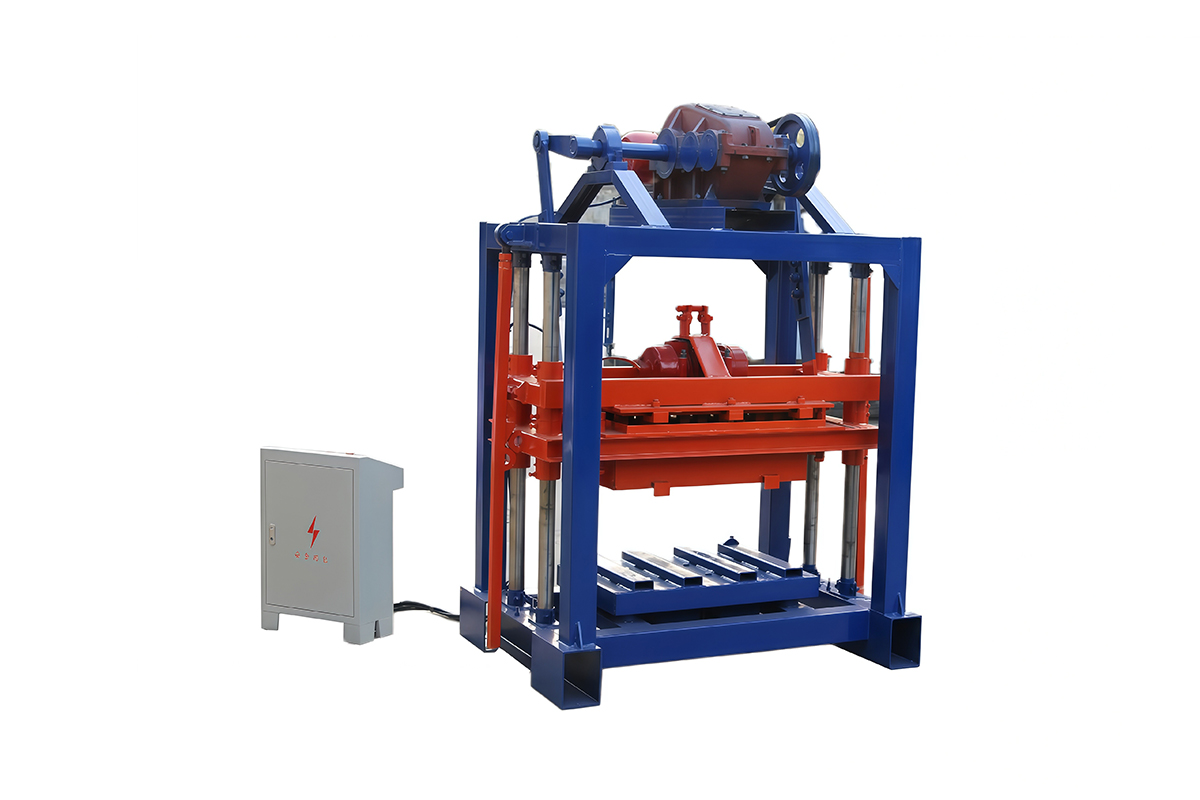

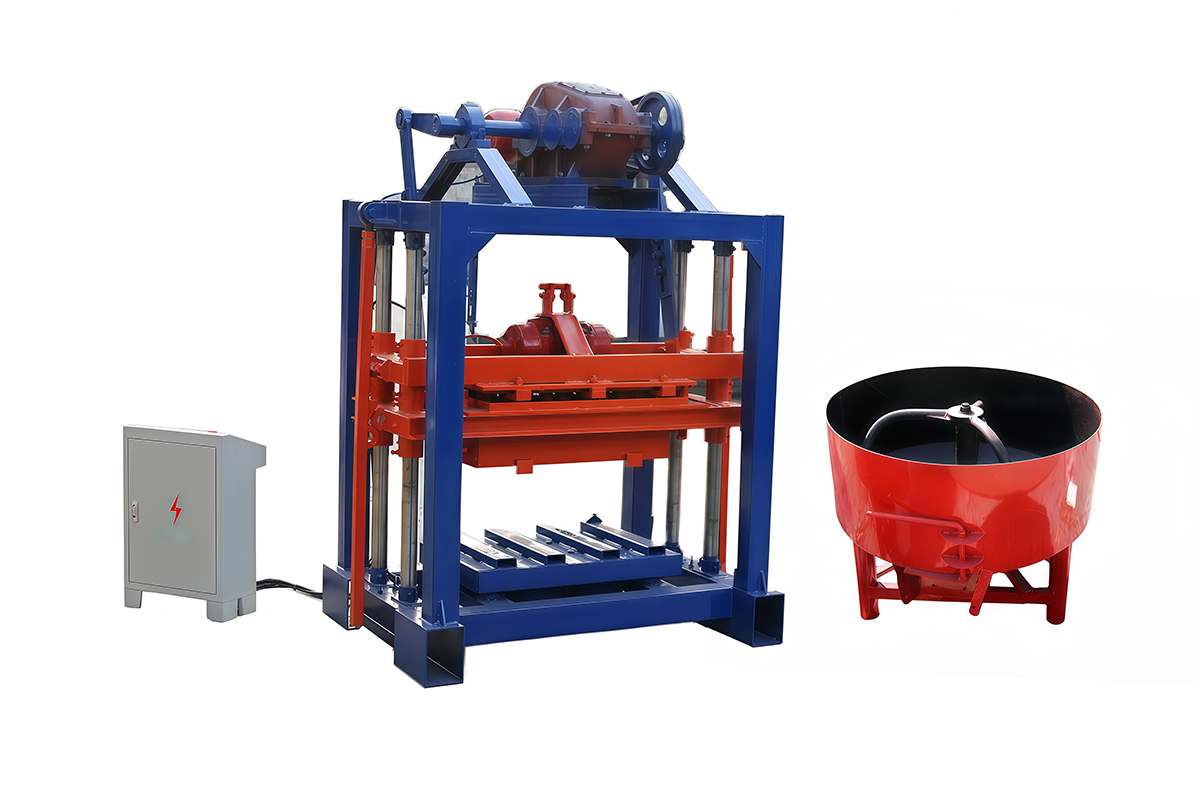

Model 4-40 Machine for Cement Blocks

The machine is manually operated, making it intuitive to use.

It operates stably and reliably.

It features a simple design, making maintenance and repair convenient.

It has a reasonable design, a small footprint, and strong site adaptability.

It has four chrome-plated guide columns and uses a reversing switch.

    Contact us
    product details
    product description

    description1

    description2

    4-40 Block Molding Machine Features

    01

    Quad-Axis Precision Guidance

    Uses 4-axis high-strength chrome-plated guide columns, symmetrically distributed at the four corners of the main frame. This achieves vertical guidance and synchronous positioning of the pressure head, ensuring molding accuracy and equipment stability.
    02

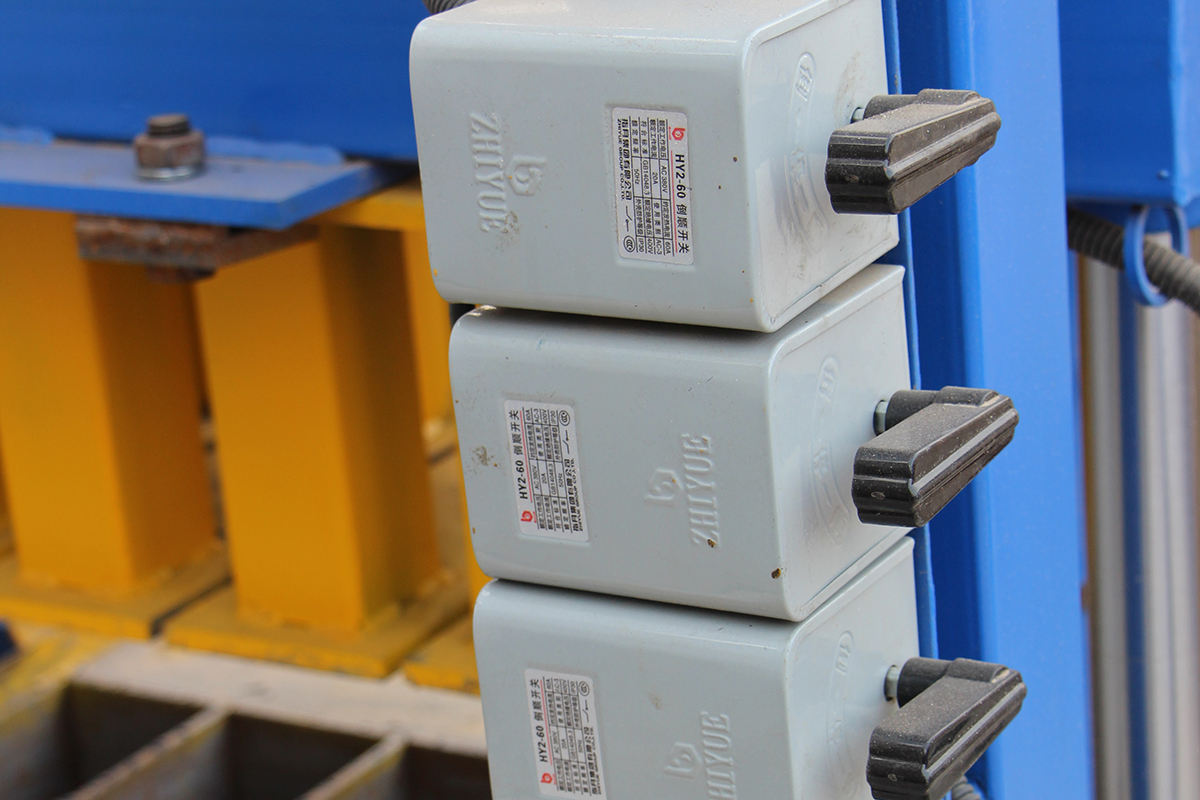

    Industrial Control Interface

    Operation keys use a forward/reverse switch directly on the equipment body. The handle gear switching is clear—"forward-stop-reverse"—with switch contacts that are robust, impact-resistant and vibration-resistant, perfect for harsh, dusty environments.
    03

    High-Performance Reducer

    Uses a thickened, high-strength housing to ensure smooth operation. Gears undergo carburizing and quenching treatment for excellent surface hardness. Precision-machined gears mesh smoothly, achieving high transmission efficiency and long service life.
    04

    National Standard Copper Motor

    Equipped with a pure copper national standard motor featuring low resistance and low loss. Combined with excellent heat resistance, it ensures long-term stability under continuous operating conditions for efficient and reliable power output.
    05

    Refined Manufacturing Process

    The block machine molds are refined through laser cutting, forging, and carburizing. They feature high wear resistance and extremely small mold gaps, ensuring the high precision and dense structure of the produced blocks.
    Main technical parameters

    Power meter of each component of the 4-40 type brick making machine

    Serial Number

    Part

    Motor power (KW)

    Quantity (units)

    Total power (kW)

    1

    Brick machine mold rise

    2.2

    1

    2.2

    2

    Upper mold vibration

    1.5

    1

    1.5

    3

    Lower mold vibration

    3

    2

    6

    4

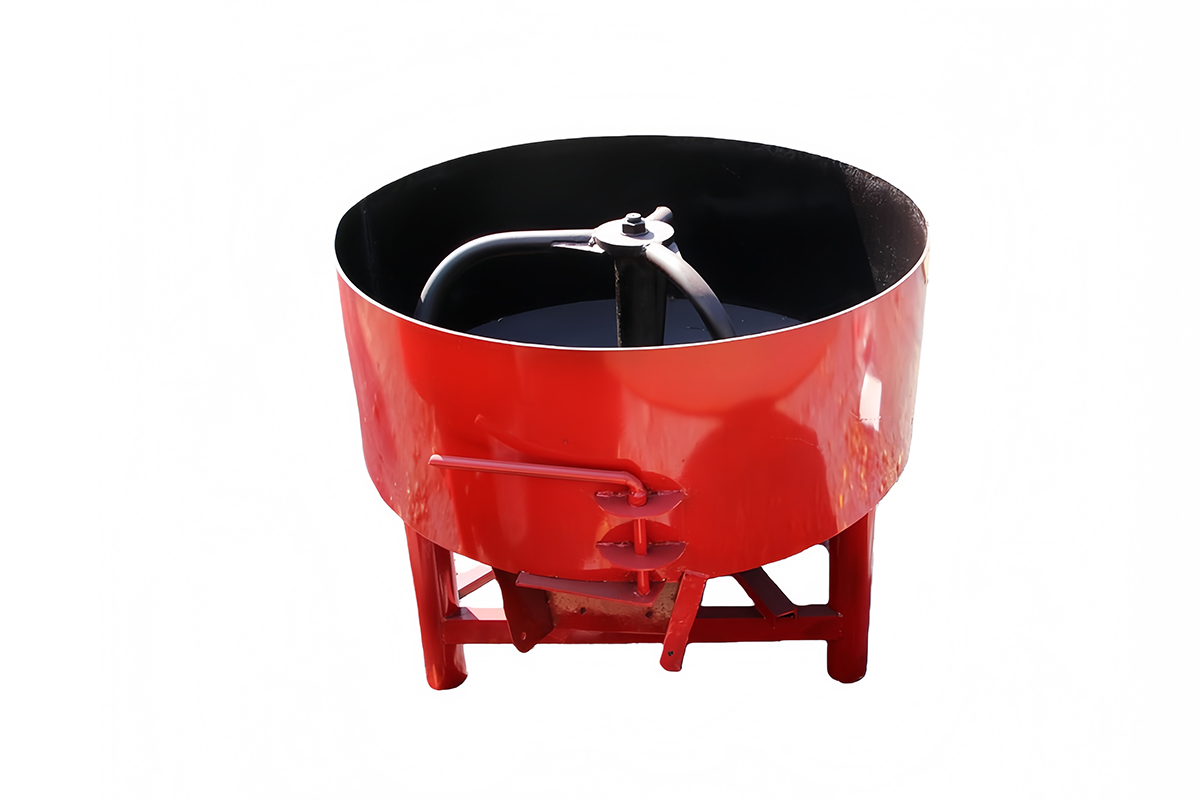

    mixer

    7.5

    1

    7.5

    5

    Total: 17.2kw
    4-40 Main Technical Parameters

    Overall Dimension

    1500x1400x1800mm

    Equipment Weight

    1300KG

    Overall Power

    9.7KW

    Molding Cycle

    30-40s

    Pallet Size

    880x480mm

    Mode of vibration

    Vibration motor
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block ayghaehb 400x200×200 4pcs
    Solid Block dsga (2) 240x115x50 21pcs
    Paver Paver 200x100x60 14pcs
