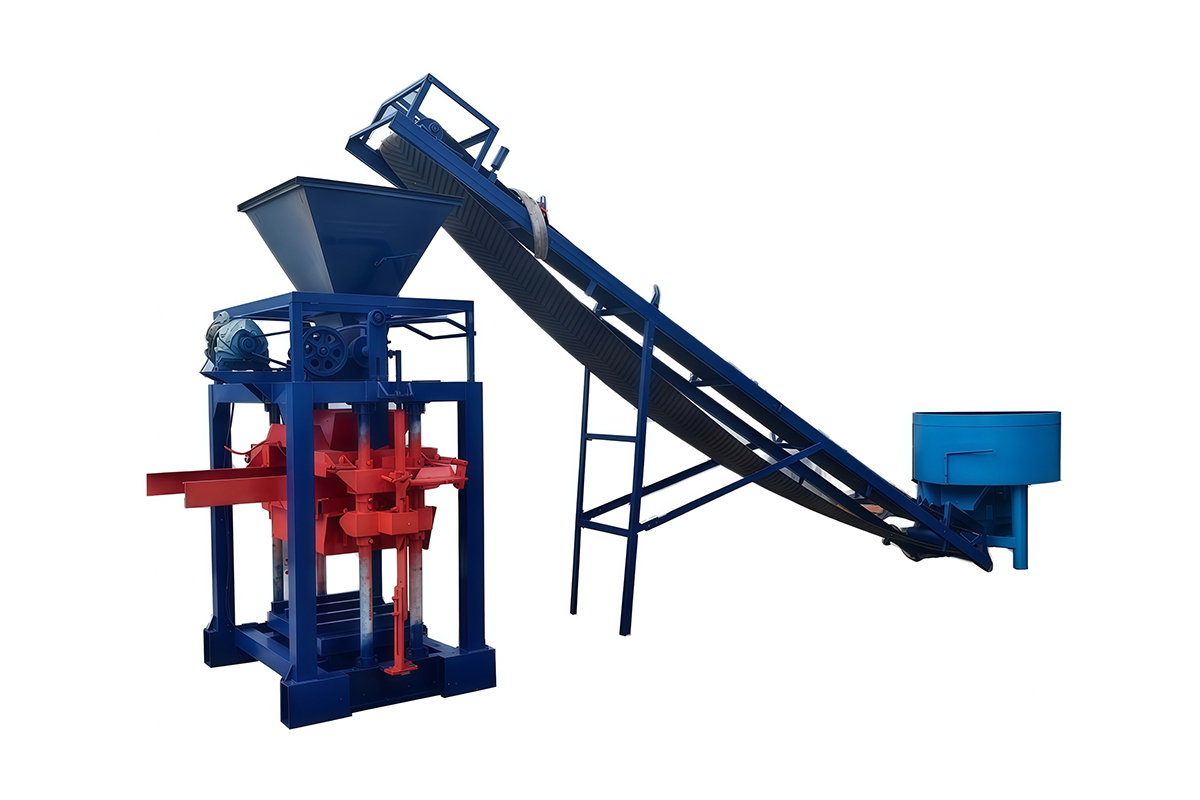

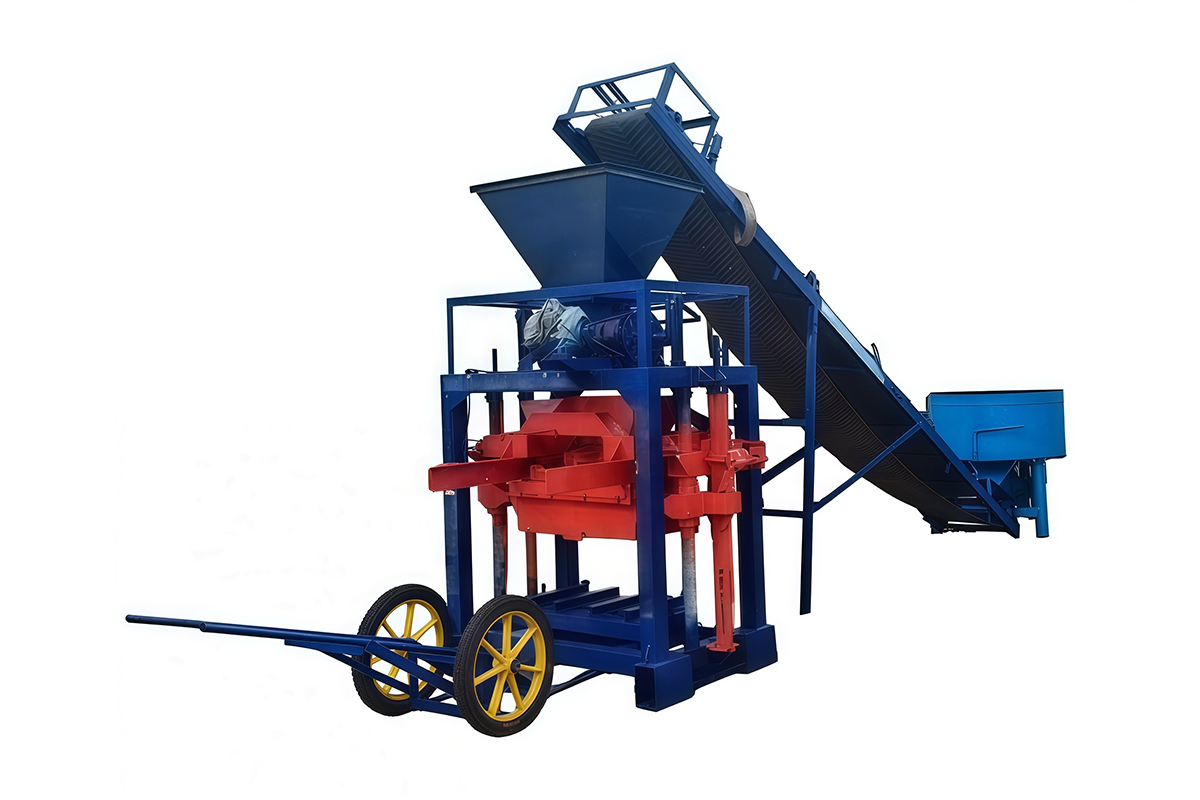

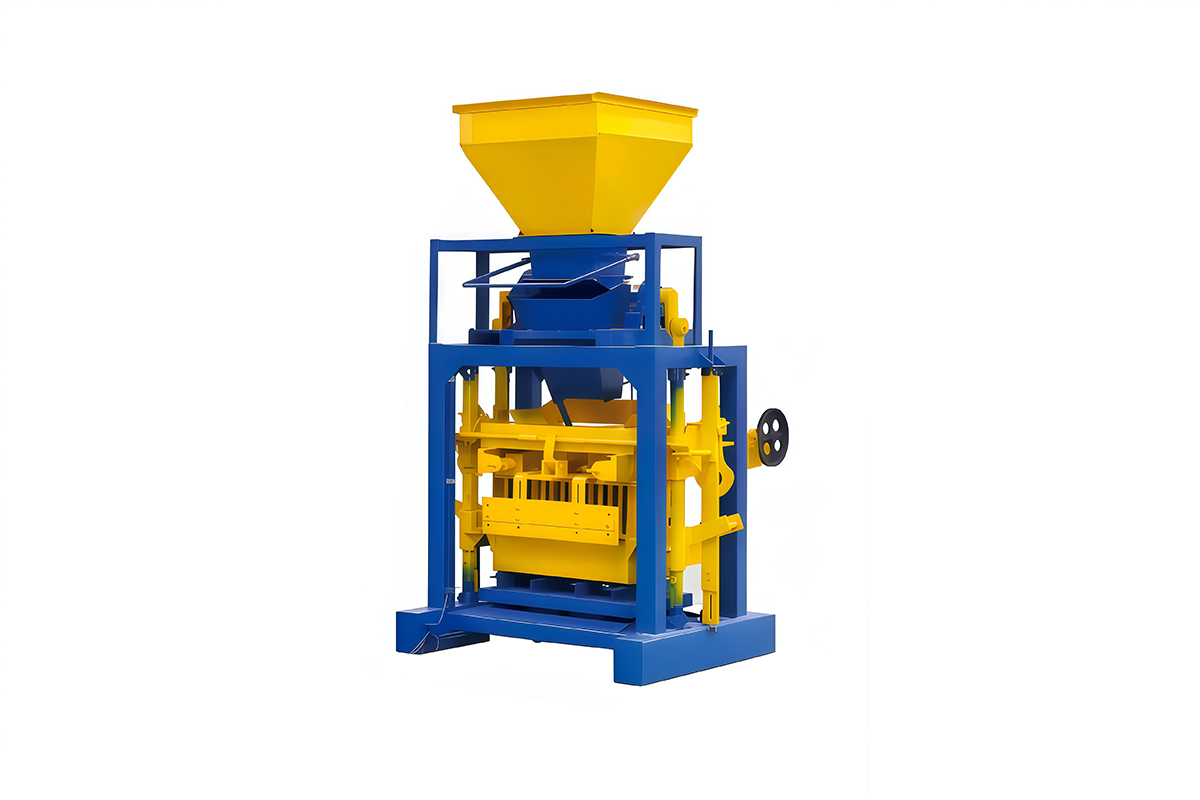

4-35 Type Cement Block Molding Machine

Engineered for small-to-medium scale production, the 4-35 model combines a compact footprint with a rigid, rational structure. The machine features an intuitive control interface and supports rapid mold changes, allowing a single unit to produce a wide variety of brick shapes and sizes. This versatility significantly reduces labor dependency and streamlines operational costs.

    Contact us
    product details
    product description

    description1

    description2

    4-35 Block Forming Machine Performance

    01

    Automated Process Optimization

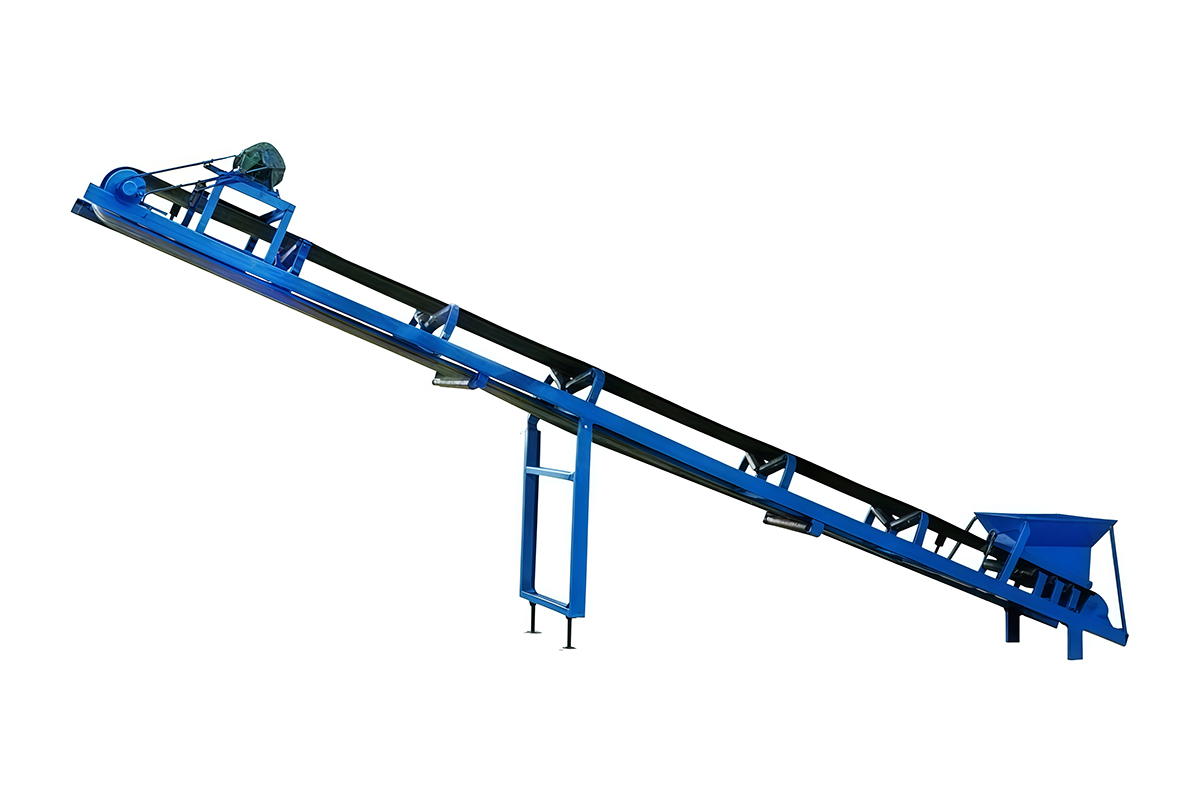

    The 4-35 block forming machine adopts a conveyor belt feeding design, which optimizes the production process: replacing traditional manual conveying with machinery saves labor costs and significantly improves overall operating efficiency.
    02

    Versatile Adaptability

    By changing the corresponding mold, it can flexibly produce hollow, standard, and perforated bricks. Optimized for quick mold changes, a single person can complete the entire change in about one hour, quickly switching production status.
    03

    Stable Electrical System

    Uses an electrical control box with an intuitive user interface and safety features. Components are selected from well-known domestic brands, ensuring stable performance, long service life, and a low failure rate for the entire machine.
    04

    Advanced Mold Manufacturing

    Manufactured using laser precision blanking, forging, and carburizing reinforcement. This ensures precise mold clearance and excellent wear resistance, resulting in products with excellent dimensional accuracy and high density.
    Main technical parameters

    Power table of components for the 4-35 type brick making machine

    Serial Number

    Part

    Motor power

    quantity

    Total power

    1

    Brick machine mold rise

    2.2

    1

    2.2

    2

    Upper mold vibration

    1.5

    1

    1.5

    3

    Lower mold vibration

    3

    2

    6

    4

    Total: 9.7 kilowatts
    4-35 Main Technical Parameters

    Overall Dimension

    1800x1700x2200mm

    Equipment Weight

    1600KG

    Overall Power

    9.7KW

    Molding Cycle

    30-35s

    Pallet Size

    880x480mm

    Mode of vibration

    Vibration motor
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould

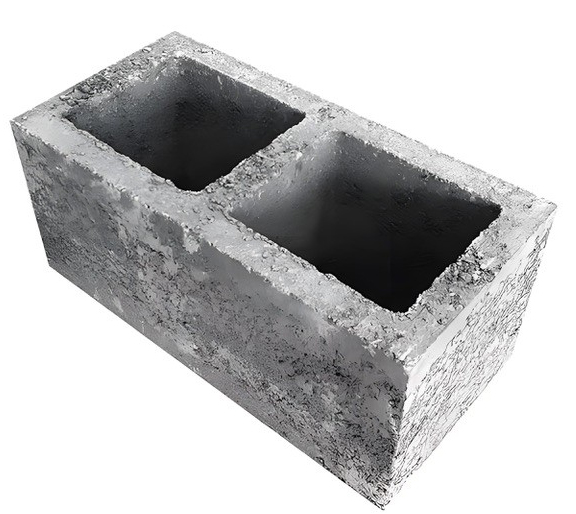

    Hollow Block jaiga (2) 400x200×200 4pcs
    Solid Block dsga (2) 240x115x50 21pcs

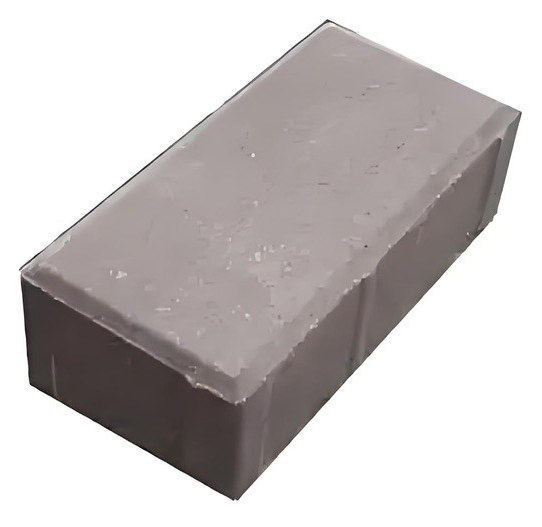

    Paver jaiga (1) 200x100x60 14pcs
