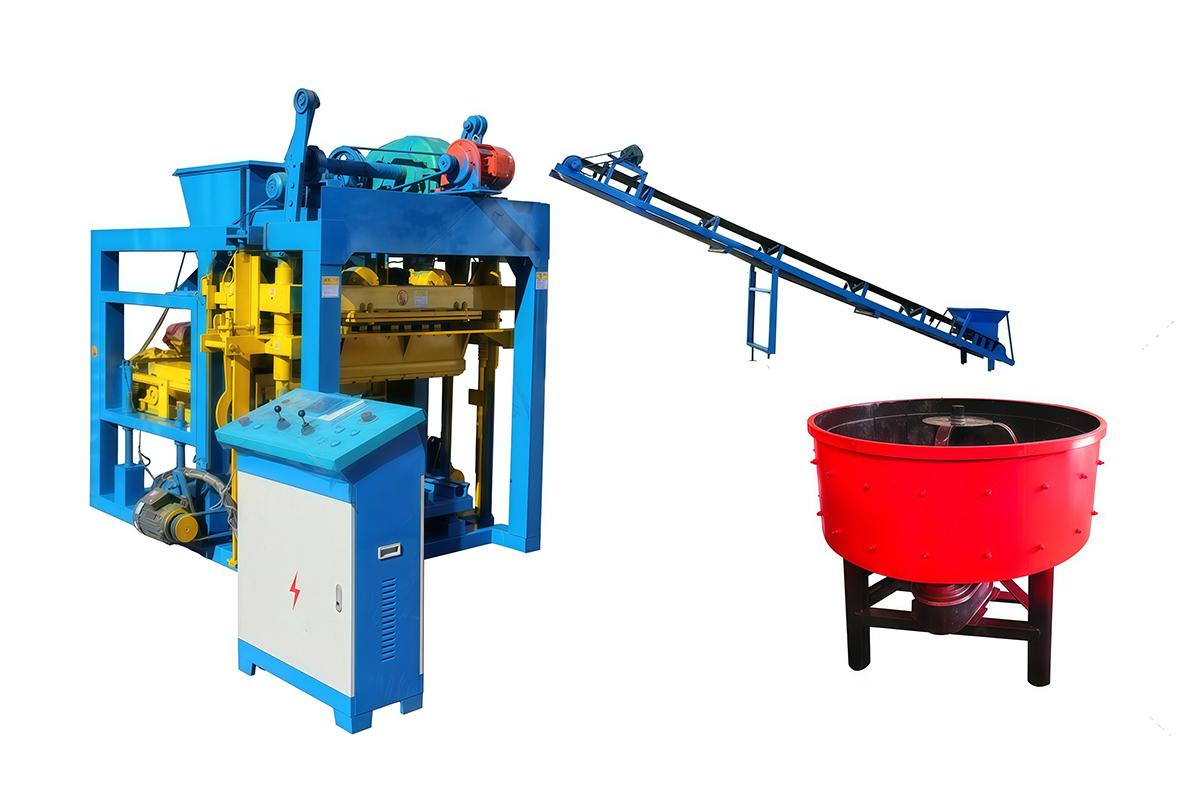

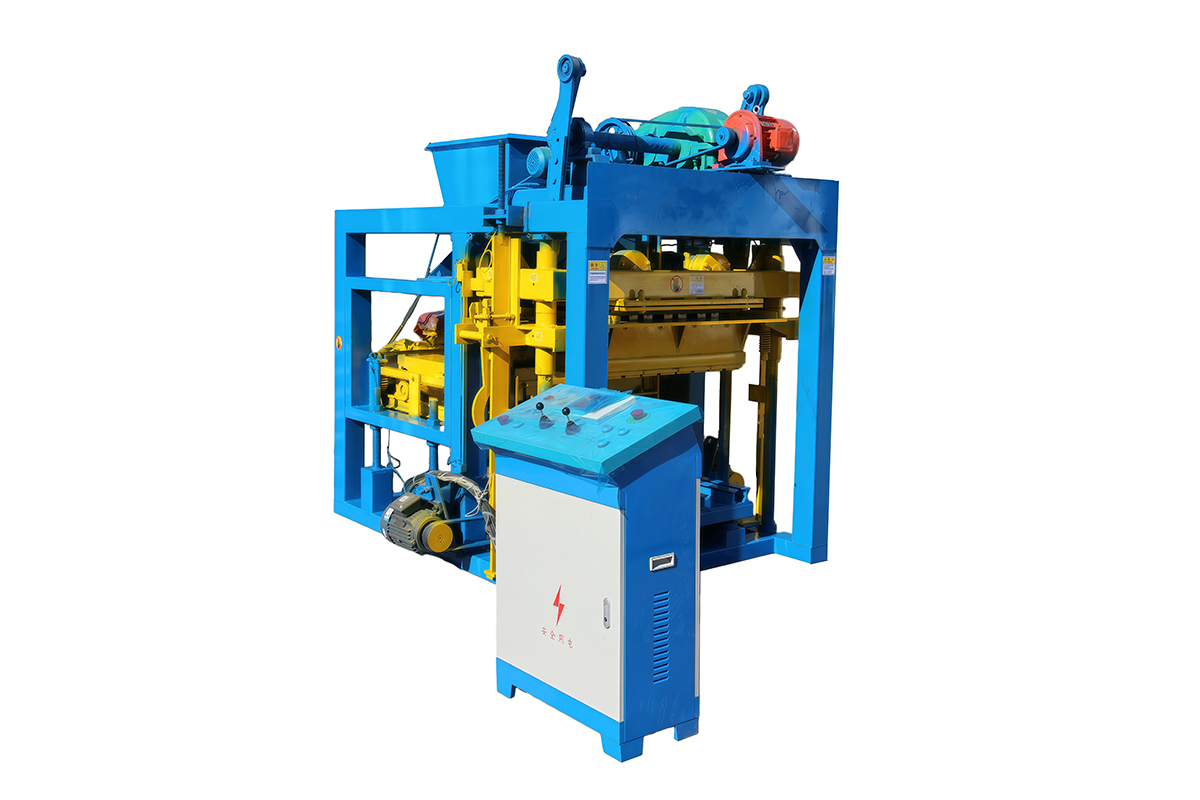

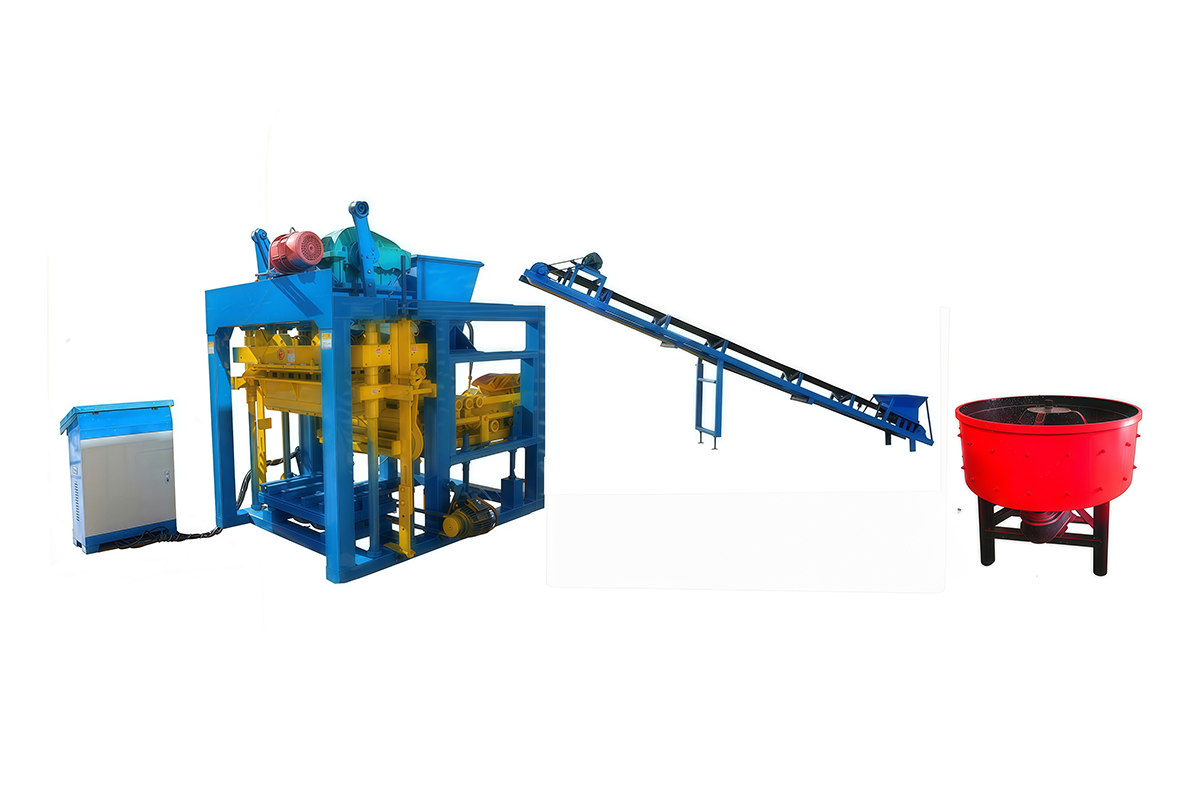

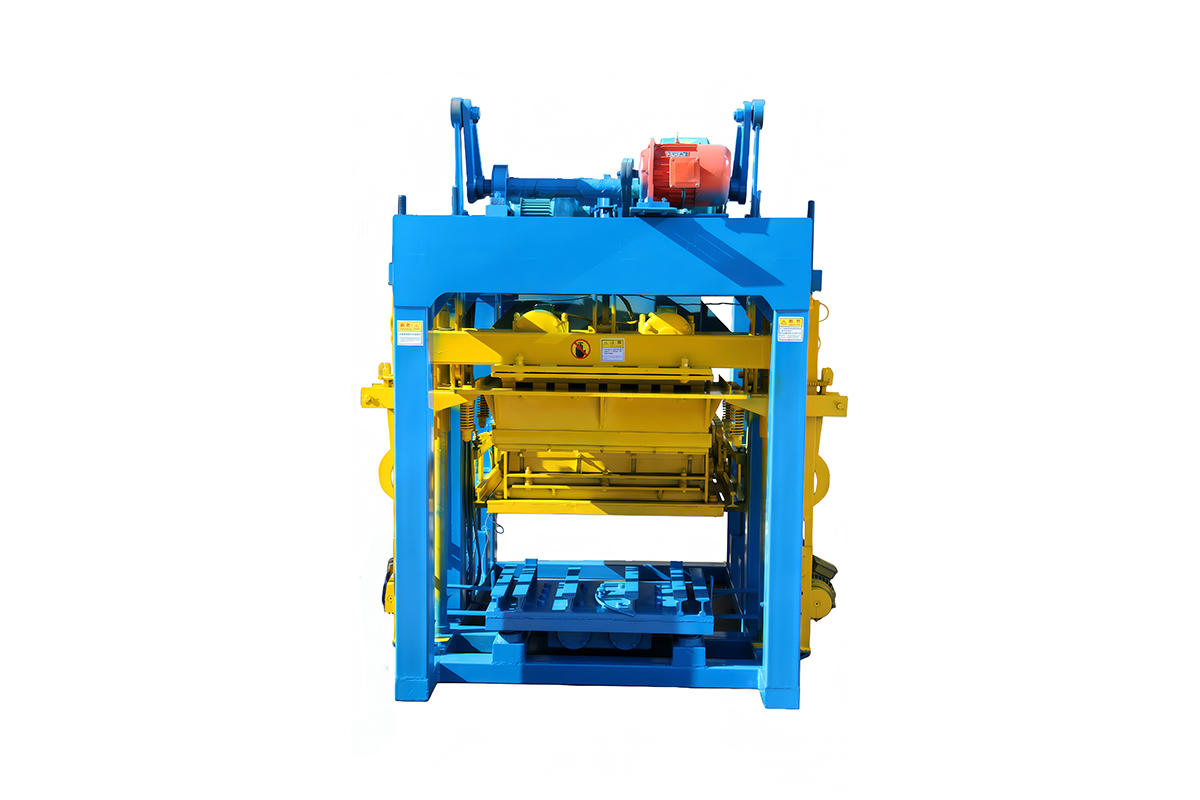

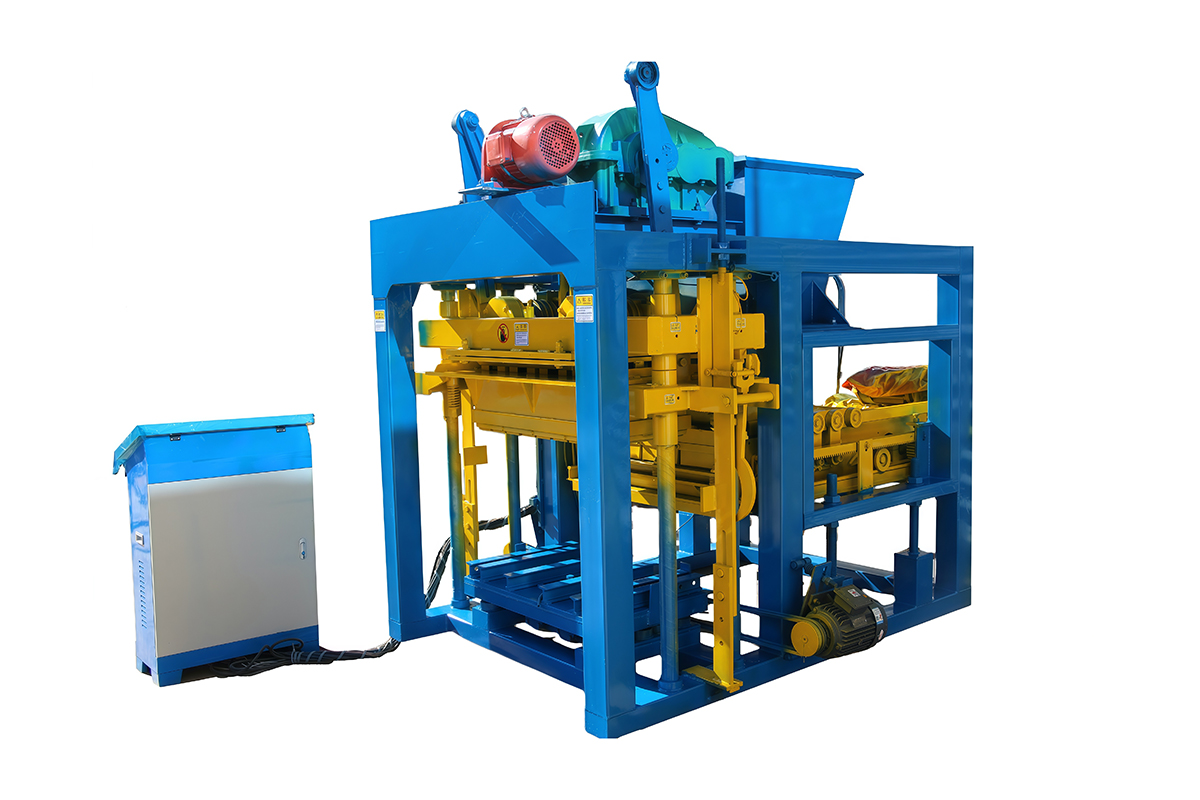

Cement Block Molding Machine With The 4-25 Type Specification

4-25 Brick Making Machine: Highly efficient and automated, reducing reliance on manual labor.

The machine utilizes vertical directional high-power vibration.

Multi-functional, widely adaptable, and flexible, meeting diverse needs.

Robust and durable, stable operation, low failure rate, and easy maintenance.

    Contact us
    product details
    product description

    description1

    description2

    4-25 Block Forming Machine Features

    01

    Integrated Process Flow

    The 4-25 block forming machine adopts an integrated design of feeding, spreading, and forming, which optimizes the process flow for maximum operational harmony.
    02

    High Efficiency Capacity

    The molding cycle is about 25 seconds per slab, with a daily output of about 25,000 standard bricks. The capacity is efficient and stable, significantly lowering labor costs.
    03

    Dual Vibration Technology

    Employs a vibration box design for the lower chamber and a dual vibration design for the upper mold, ensuring fast brick forming, high density, and high standardization.
    04

    Wide Adaptability

    The machine is versatile; by changing the molds, it can produce standard bricks, hollow bricks, perforated bricks, etc., meeting diverse construction project needs.
    05

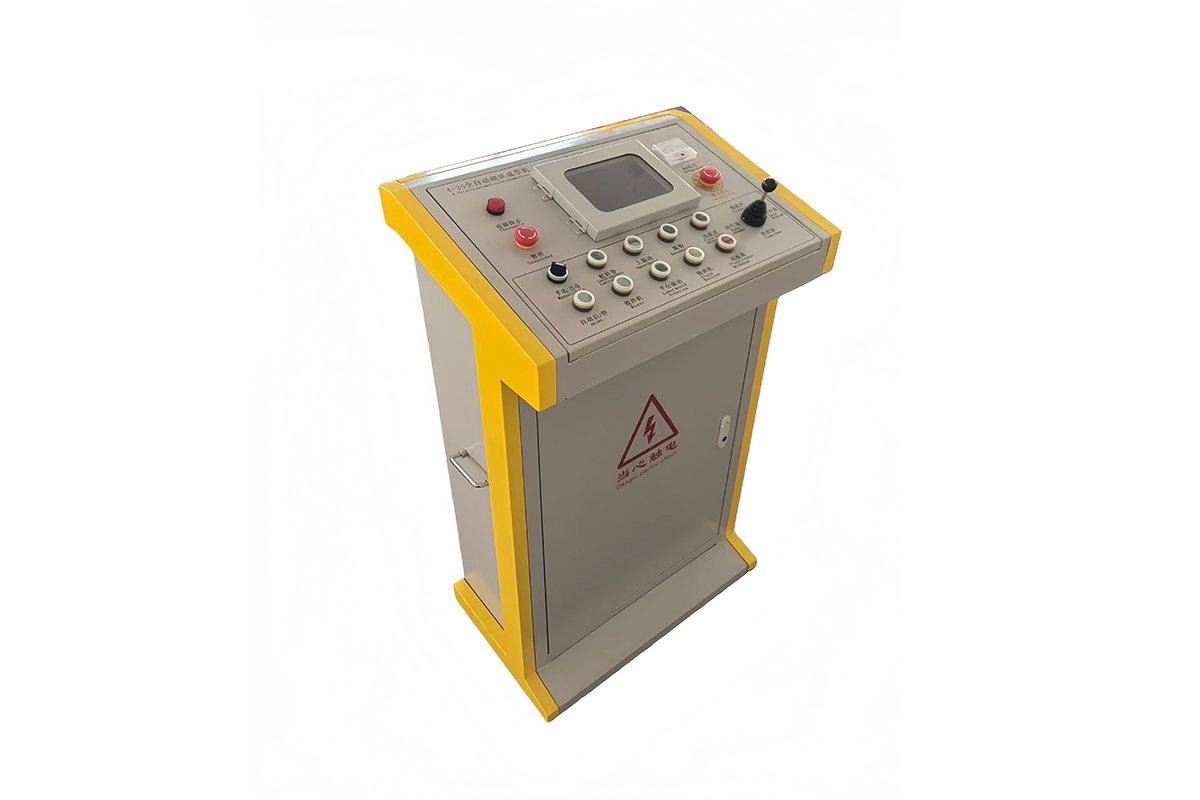

    PLC Intelligent Control

    Controlled by a PLC control box, which integrates advanced fault self-diagnosis functions, combining simple operation with flexible programmability.
    06

    Reliable Electrical Components

    Electrical appliances are selected from well-known domestic brands, featuring excellent durability, long lifespan, and a high reliability with low failure rates.
    07

    Precision Mechanical System

    Adopts a mechanical transmission system with a compact structure. The welded steel body and high-quality molds significantly reduce failure risks while extending service life.
    Main technical parameters

    Serial Number

    Part

    Motor power (kW)

    quantity

    Total power

    1

    Brick machine mold rising and falling

    3

    1

    3

    2

    Upper mold vibration

    1.5

    2

    3

    3

    Lower mold vibration

    3

    2

    6

    4

    mixing motor

    2.2

    1

    2.2

    5

    Material cart forward and backward

    2.2

    1

    2.2

    6

    Unhook motor

    0.75

    1

    0.75

    7

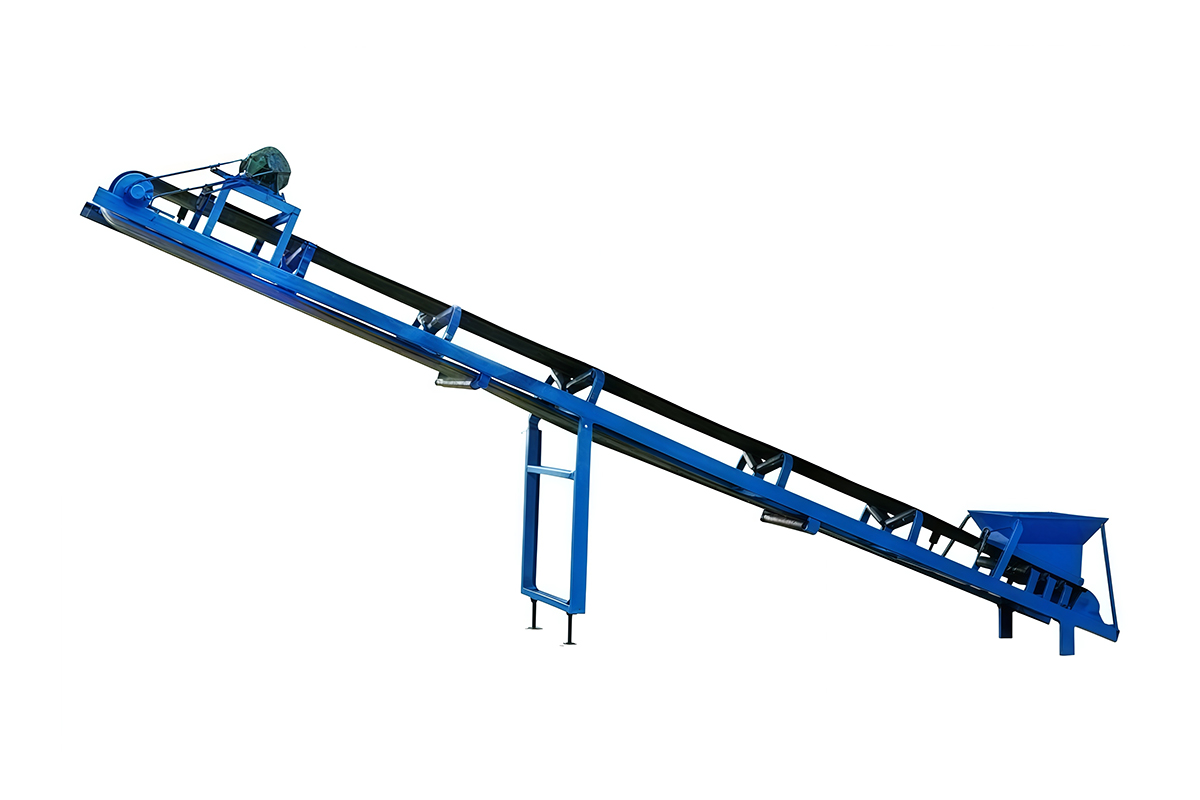

    conveyor

    1.5

    1

    1.5

    8

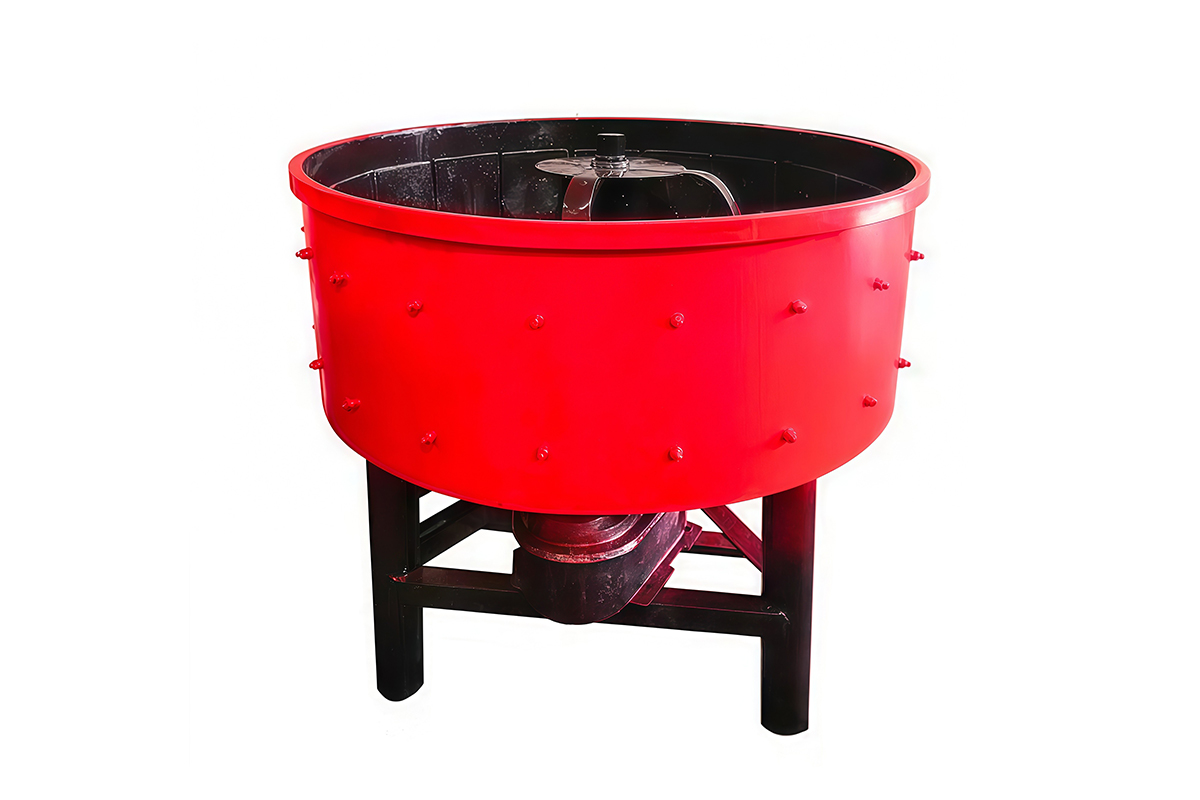

    mixer

    11

    1

    11

    9

    total:：29.65kw
    4-25 Main Technical Parameters

    Overall Dimension

    2500x1800x2300mm

    Equipment Weight

    2800KG

    Overall Power

    29.65KW

    Molding Cycle

    25-30s

    Pallet Size

    900x550mm

    Mode of vibration

    Platform Vibration
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block dsga (1) 400x200×200 4pcs
    Solid Block dsga (2) 240x115x50 28pcs
    Paver Paver 200x100x60 16pcs
