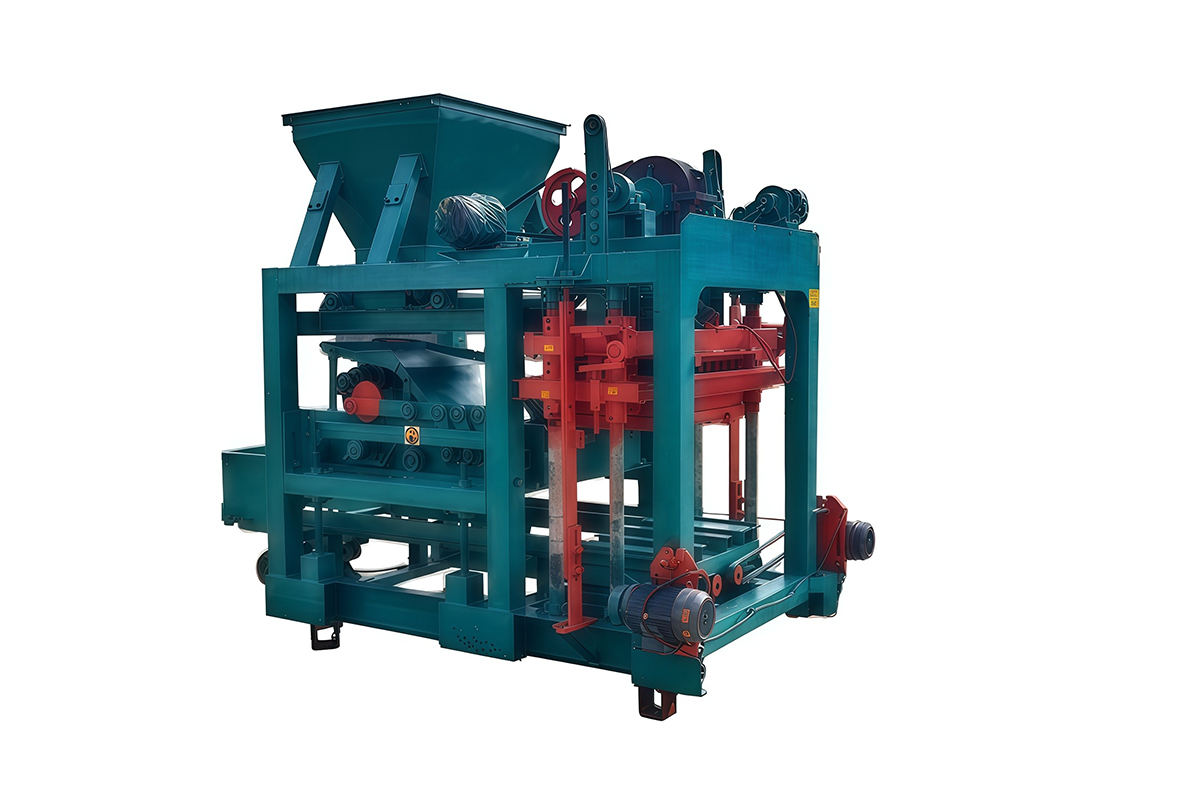

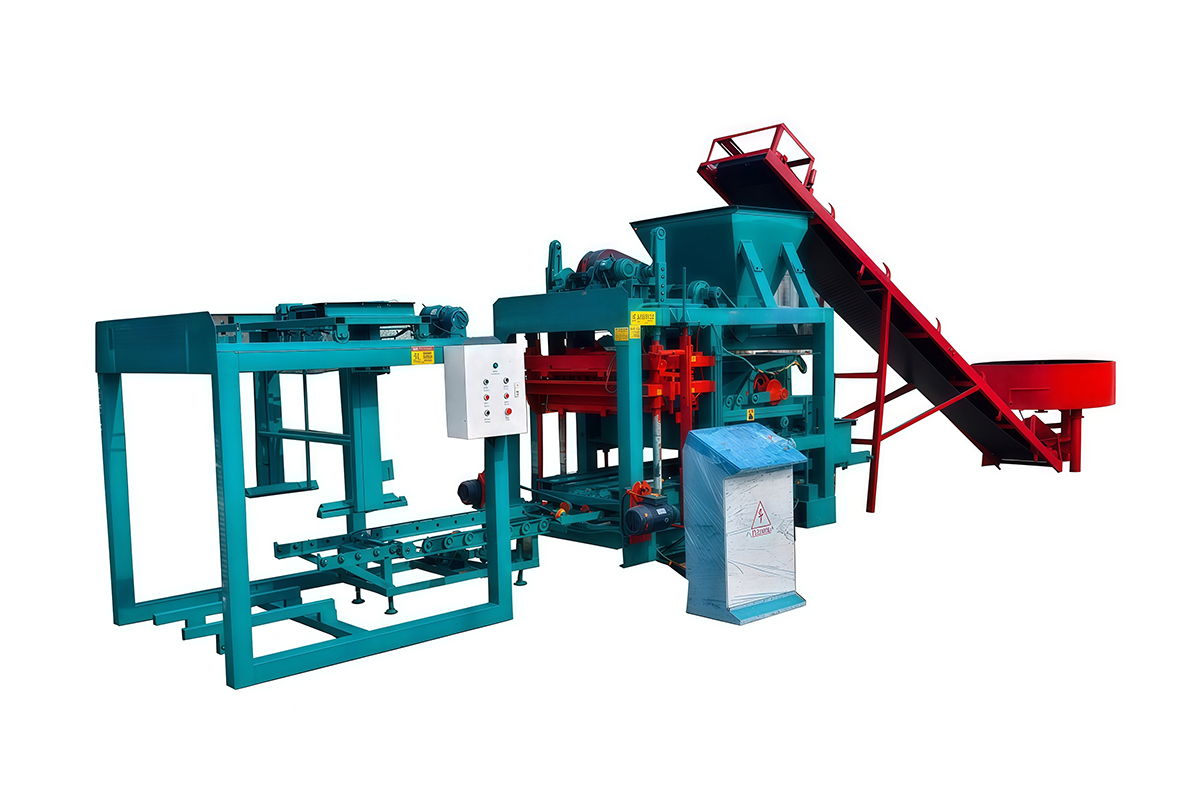

4-20 Type Automatic Block Forming Machine

One machine can be used for multiple purposes, resulting in high equipment utilization.

It features automated control while also offering excellent ease of operation.

Fast molding speed, highly homogeneous products with dense structure.

The machine body has a stable structure and a long overall service life.

    Contact us
    product details
    product description

    description1

    description2

    Production Versatility & Value

    01

    Multi-functional & Adaptable

    Adaptable to all types of bricks: Simply change the mold to complete the production conversion of hollow bricks, curb stones and other products. The mold changing efficiency is high and the utilization rate of equipment resources is significantly optimized.
    02

    Advanced Control Systems

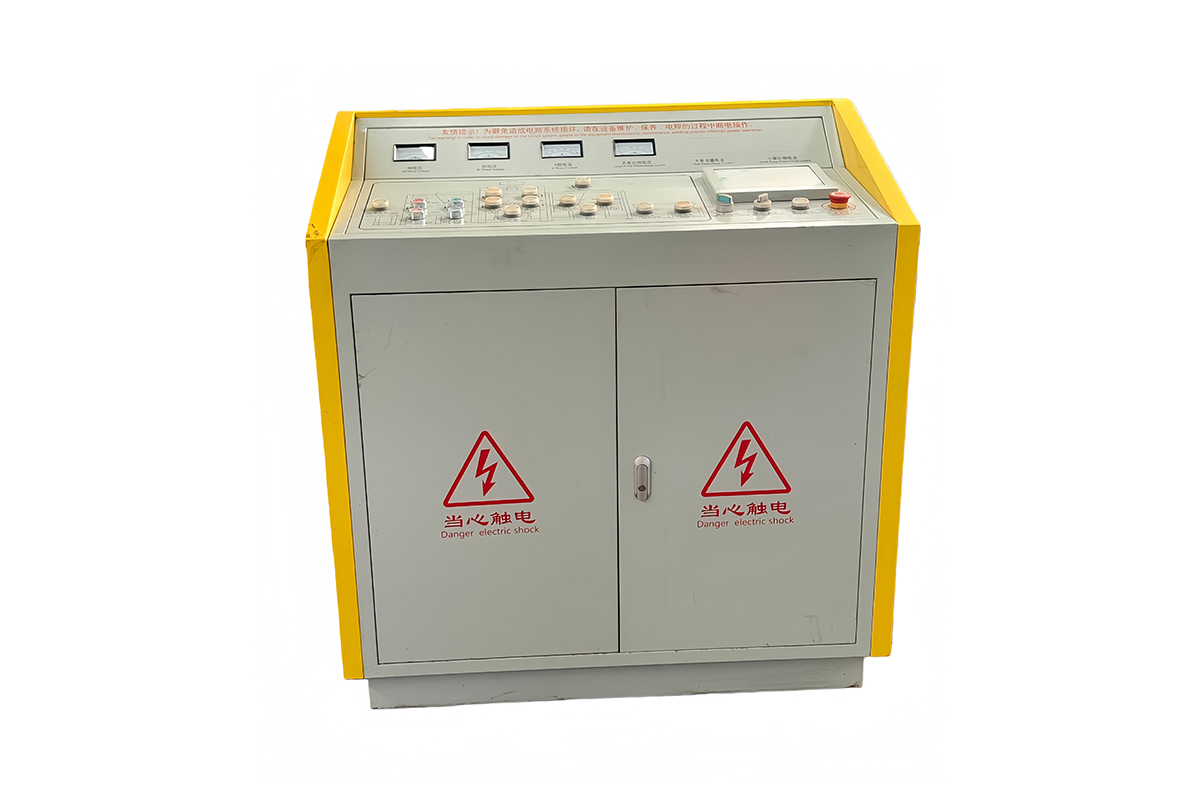

    Electrical and Control Systems: PLC + Touch Screen, automatic board feeding, material placement, and brick output; ordinary workers can be trained quickly. Supports recipe storage and self-diagnosis of faults; supports fully automatic/manual dual modes with one-click parameter recall for convenient debugging.
    03

    Dual-Mold Resonance System

    The upper and lower molds resonate to form a stable quality: the vibration of the upper mold and the vibration of the lower mold result in uniform density and superior structural integrity of every finished brick.
    04

    High Cost-effectiveness

    Optimized for small and medium-sized production: The molding cycle is stable at 25 seconds, with 4 hollow bricks per mold. The investment cost is only 1/3 to 1/2 of that of large machines, ensuring a fast payback period for your business.
    05

    Industrial Grade Frame and Body

    Constructed from thickened steel, ensuring excellent overall rigidity, good vibration resistance, and durability. This heavy-duty build significantly extends the equipment's service life and maintains precision under long-term high-intensity operation.
    Main technical parameters

    Power table of components for 4-20 block molding machine

    Serial Number

    Part

    Motor   power (kW)

    quantity

    Total power

    Remark

    1

    Brick machine mold rising and falling

    3

    1

    3



    2

    Upper mold vibration

    1.5

    2

    3



    3

    Lower mold vibration

    3

    2

    6



    4

    mixing motor

    2.2

    1

    2.2



    5

    Material cart forward and backward

    2.2

    1

    2.2



    6

    Unhook motor

    0.75

    1

    0.75



    7

    Circular band

    1.5

    1

    1.5



    8

    plate feeding motor

    1.5

    1

    1.5



    9

    Brick Conveying Machine

    0.75

    1

    0.75



    10

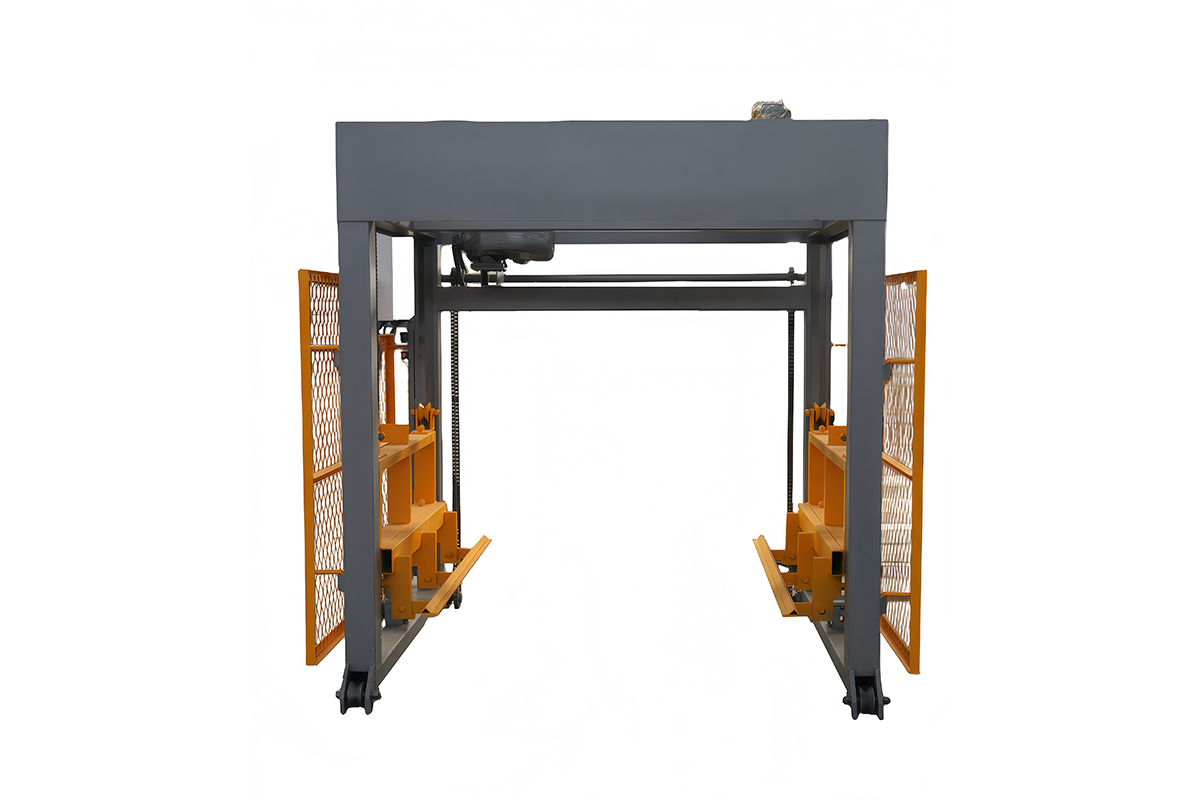

    Stacking machine rises and falls

    1.1

    1

    1.1

    Optional

    11

    Stacking machine forward and backward

    0.75

    1

    0.75

    12

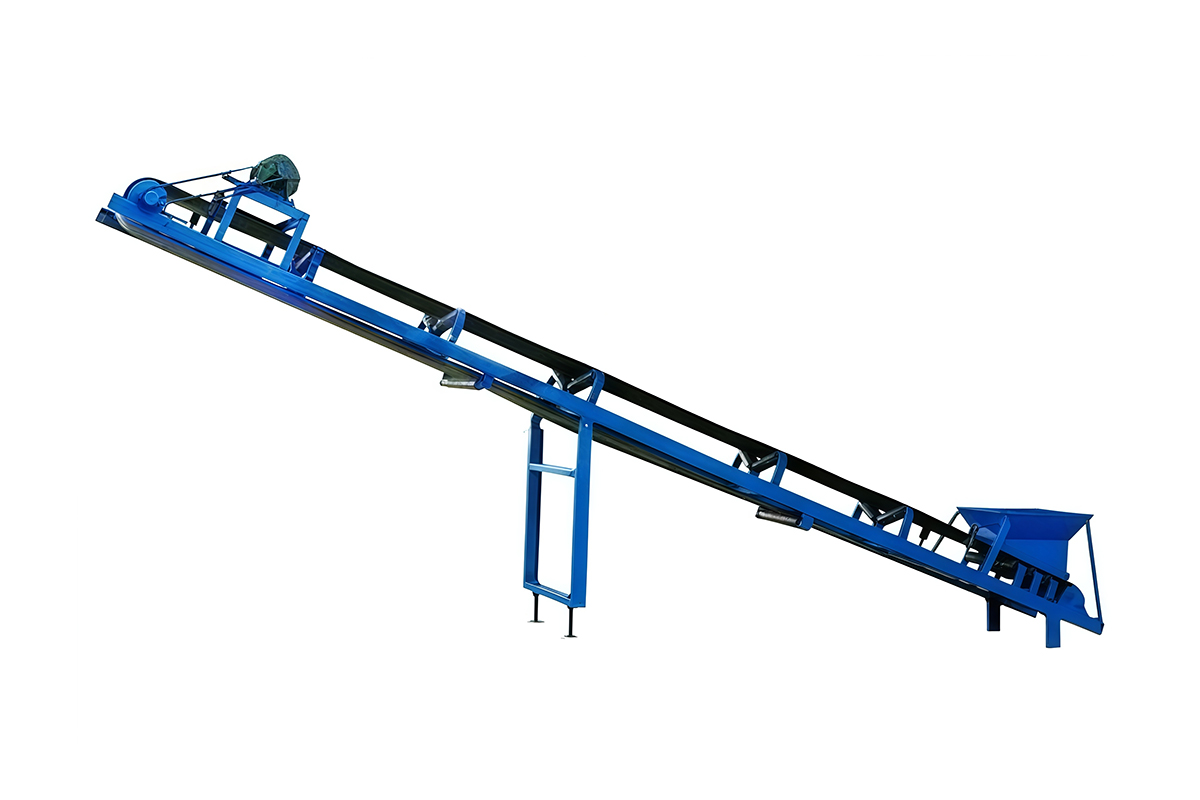

    conveyor

    1.5

    1

    1.5



    13

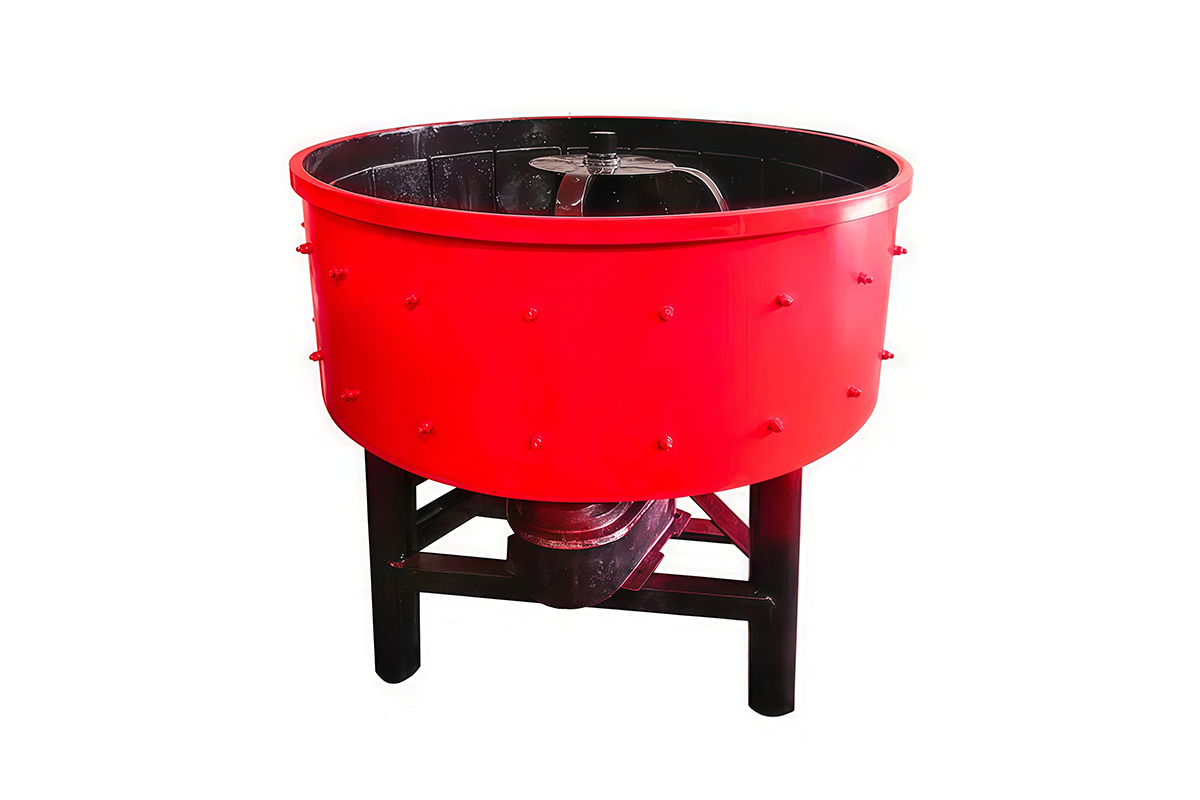

    mixer

    11

    1

    11



    14

    Total: 35.25kw
    4-20 Main Technical Parameters

    Overall Dimension

    3200x1800x2300mm

    Equipment Weight

    3200KG

    Overall Power

    35.25KW

    Molding Cycle

    20-25s

    Pallet Size

    900x550mm

    Mode of vibration

    Platform Vibration
    Block Name & Size
    Block Name Block Sample Size(mm) Qty/mould
    Hollow Block dsga (1) 400x200×200 4pcs
    Solid Block dsga (2) 240x115x50 28pcs
    Perforated Brick Perforated Brick 240x115x90 16pcs
