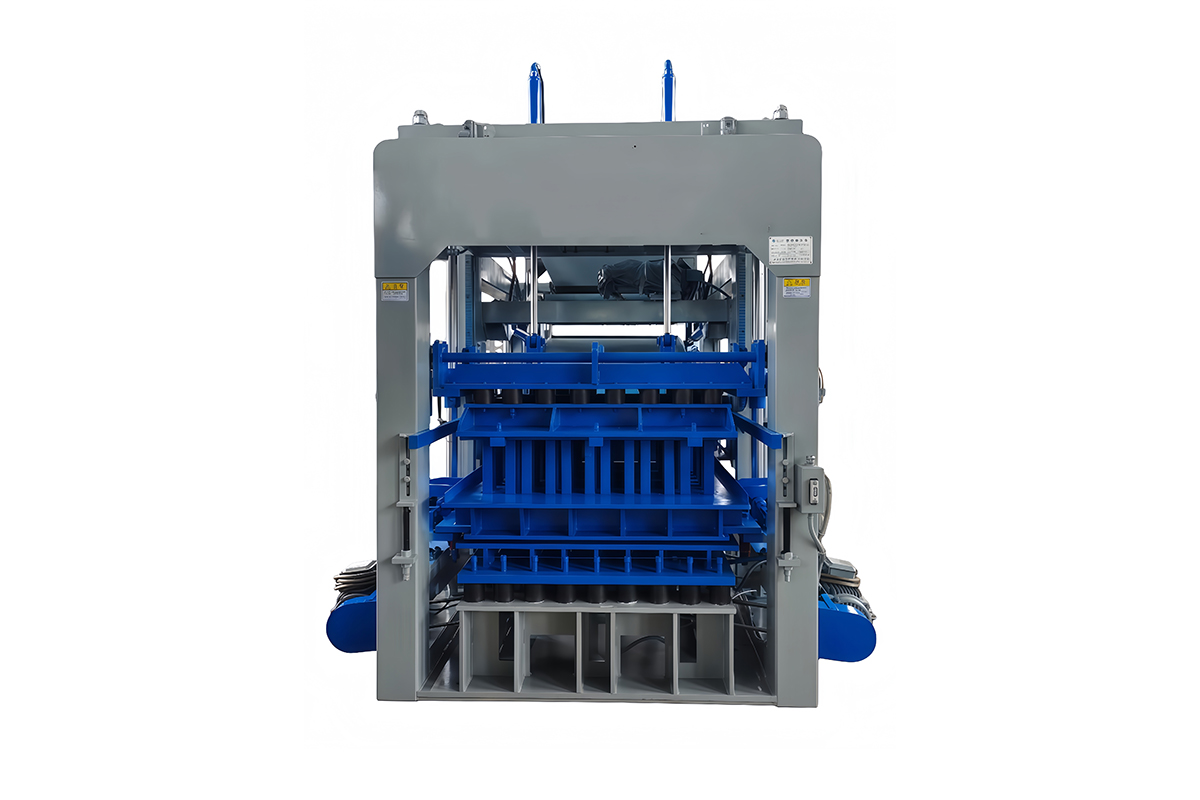

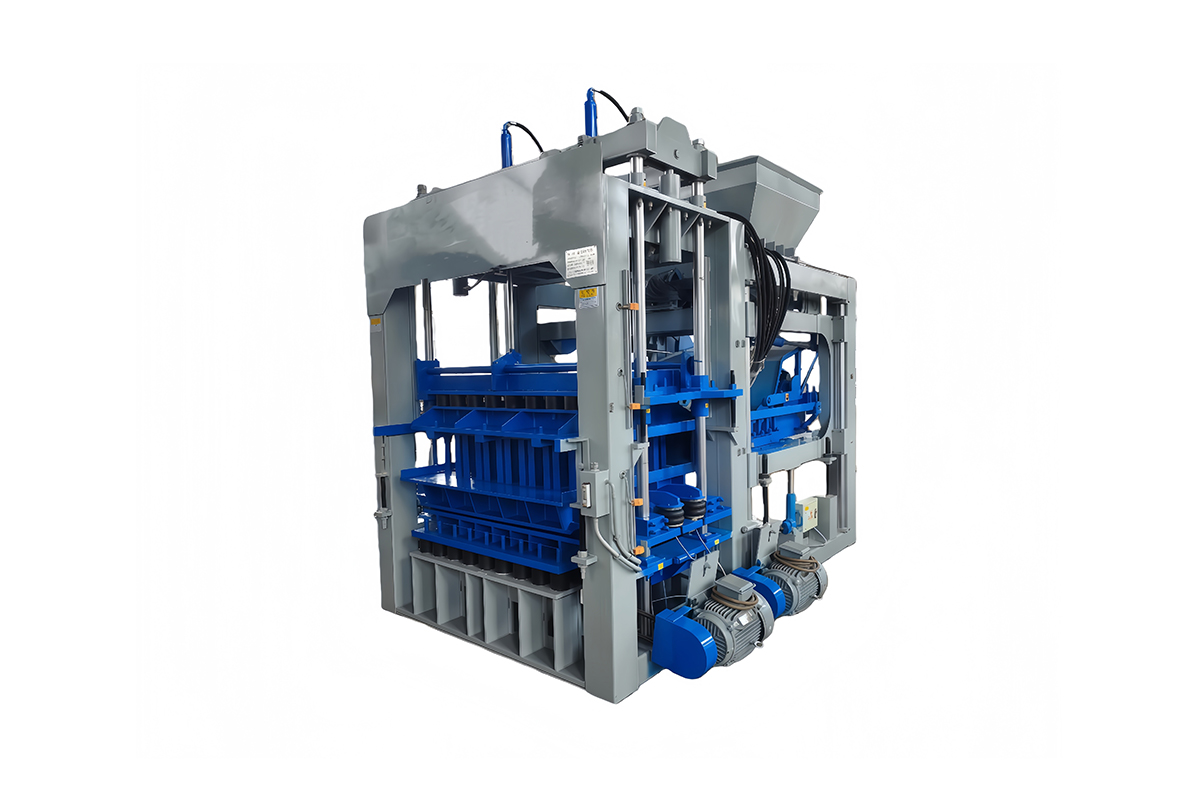

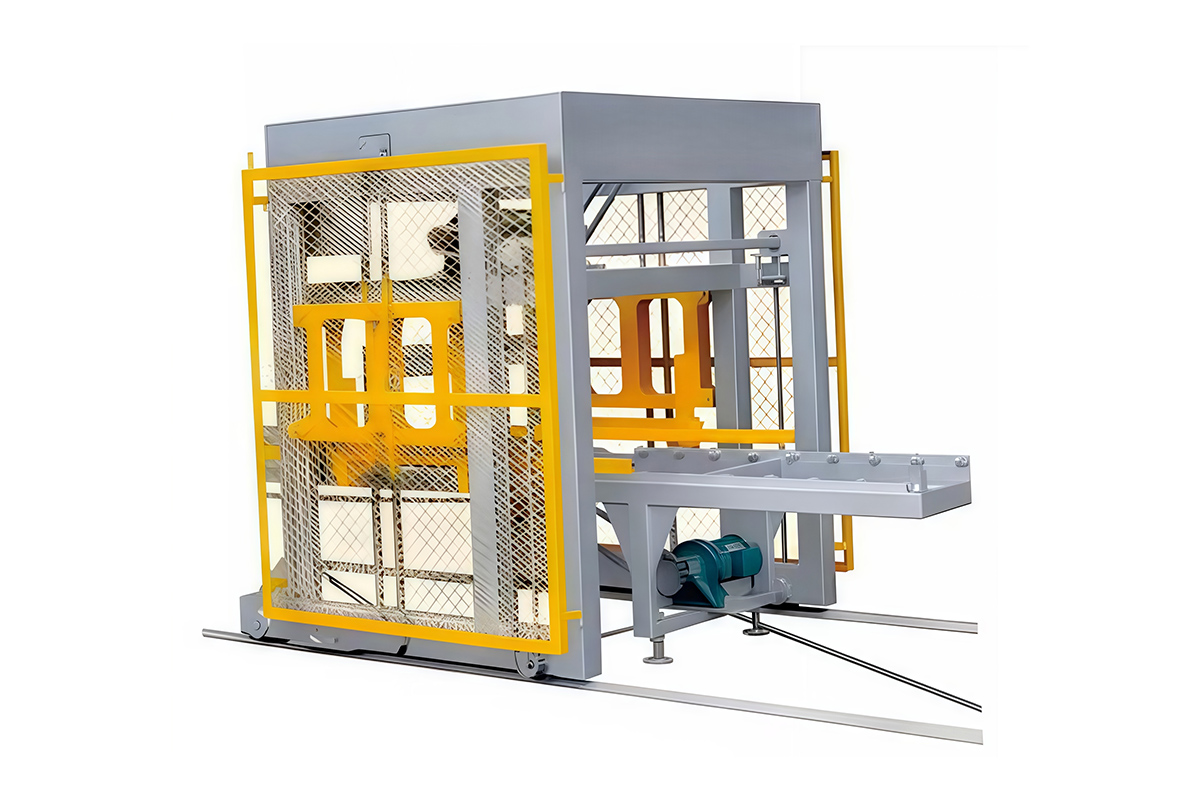

Type 10-15 Automatic Block Molding Machine
description1
description2
Full-Automatic Intelligent Production Line
01
Intelligent Closed-Loop Operation
The entire process achieves intelligent closed-loop operation: Precise Mixing → Auto Feeding → Material Storage → Precision Distribution → Vibration Molding → Bump-free Extrusion → Auto Stacking → Forklift Transport → Curing → Delivery. The entire line requires no manual intervention; only 3-4 people are needed, significantly reducing labor input and management costs.
02
Elite Production Capacity
The molding cycle can be reduced to less than 15 seconds, with a single mold producing 54 standard bricks and an 8-hour production capacity exceeding 100,000 bricks. Supporting 24-hour uninterrupted production, it can efficiently undertake large-volume orders for national-level municipal projects and large-scale infrastructure projects.
03
High-Pressure Quality Standards
Utilizing dual ultra-large diameter hydraulic main cylinders, the rated pressure is 25-30MPa, with an adjustable vibration frequency of 3000-5000r/min. The scrap rate is below 1%. The finished product's compressive strength is ≥20MPa, far exceeding national standards, making it suitable for high-rise walls and key municipal project fencing.
04
Sustainable Economic Advantages
Wide adaptability of raw materials: It can produce pure cement sand bricks or utilize a large amount of industrial waste (fly ash, slag, coal gangue) with a mixing ratio of 30%-70%. This reduces raw material costs and conforms to environmental policies, achieving a win-win for economic and ecological benefits.
05
High Equipment Utilization Rate
Multi-purpose and non-idle: By simply changing the matching mold, various cement products can be flexibly produced. This effectively solves the problem of idle capacity during the off-season, greatly improving the overall utilization rate and steadily increasing operating income by expanding profit channels.
Main technical parameters
Power table of various components of 10-15 brick making machine | |||||
Serial Number |
Part |
Motor power (kW) |
quantity |
Total power |
Remark |
1 |
Lower mold vibration |
15 |
2 |
30 |
|
2 |
mixing motor |
5.5 |
1 |
5.5 |
|
3 |
Annular belt |
2.2 |
1 |
2.2 |
|
4 |

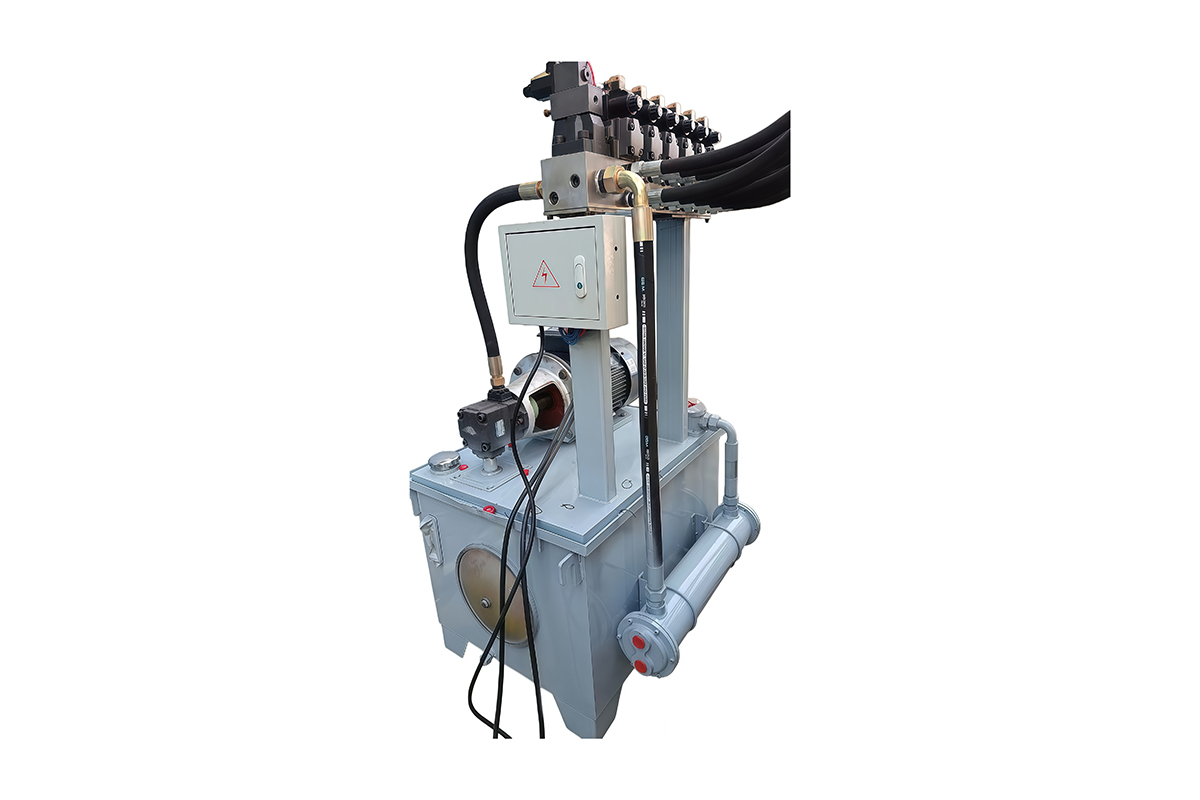

Hydraulic oil station |
22 |
1 |
22 |
|
5 |
Brick Conveyor |
2.2 |
1 |
2.2 |
|
6 |

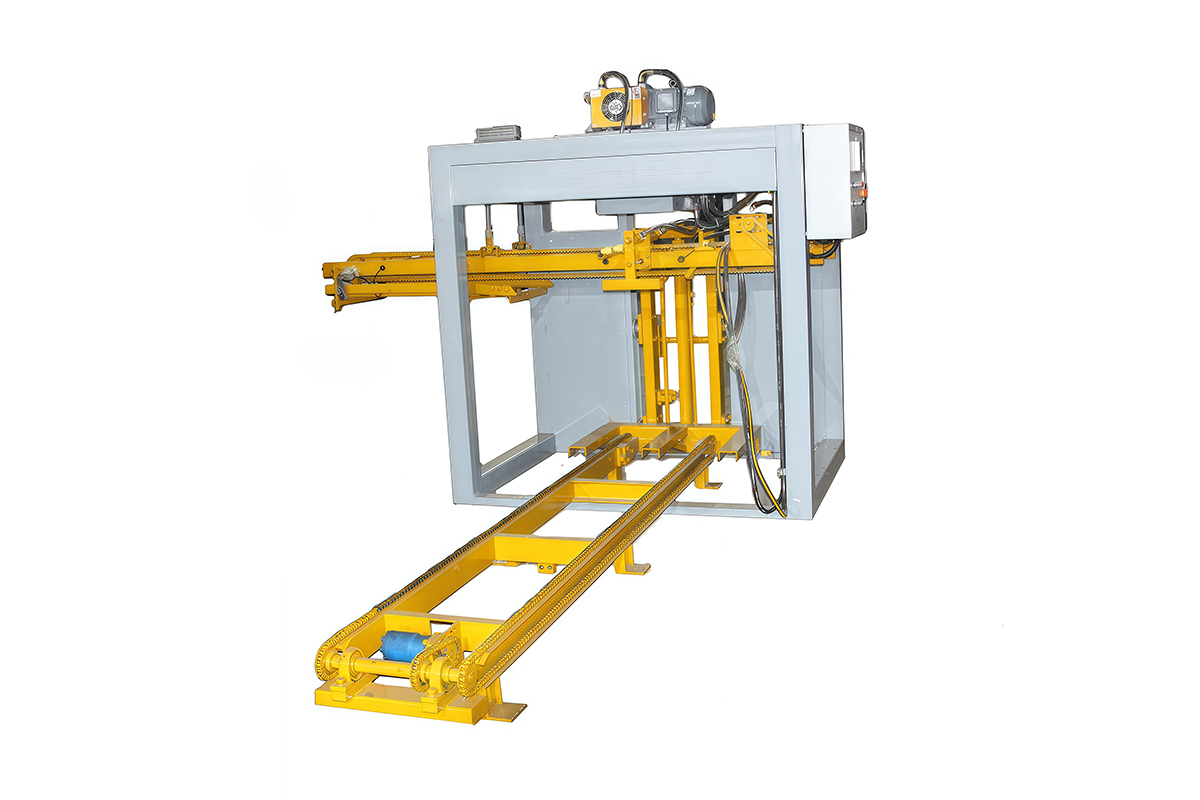

Stacking machine rises and falls |
3 |
1 |
3 |
|
7 |
Stacking machine forward and backward |
1.5 |
1 |
1.5 |
|
8 |
loading machine |
4 |
1 |
4 |
|
9 |

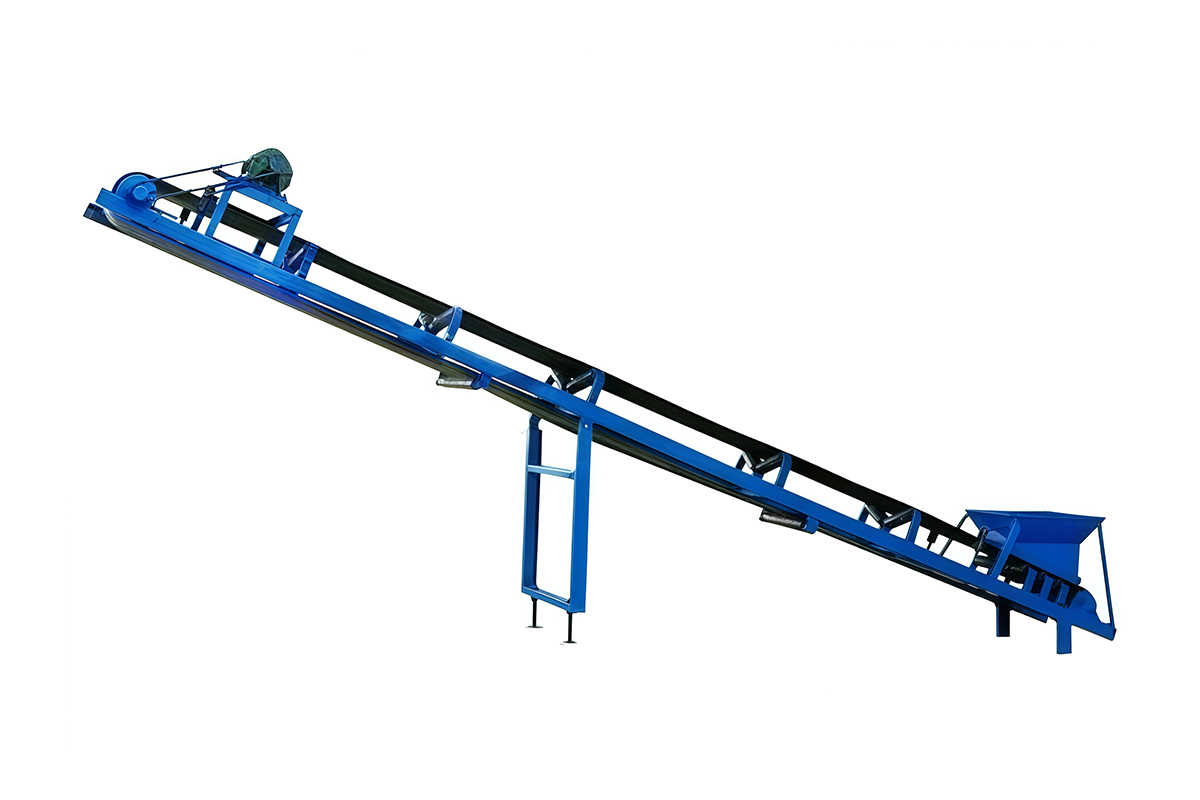

conveyor |
4 |
1 |
4 |
|
10 |

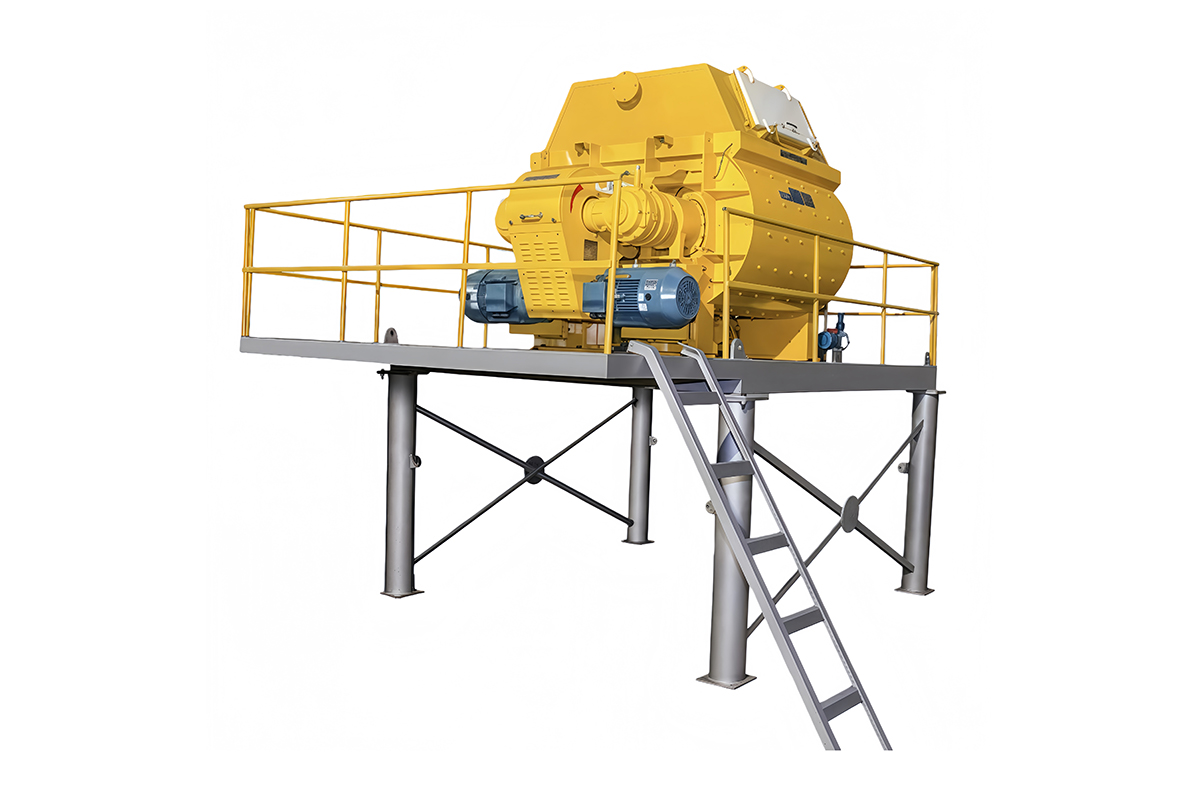

JS750 Forced Mixer |
30 |
1 |
30 |
Optional |
11 |
Mixer lifting hopper |
7.5 |
1 |
7.5 |
|
12 |
water pump |
2.2 |
1 |
2.2 |
|
13 |
JS1000 Forced Mixer |
37 |
1 |
37 |
Optional |
|
14
|
Mixer lifting hopper |
11 |
1 |
11 |
|
15 |
water pump |
2.2 |
1 |
2.2 |
|
16 |
PLD Two-Compartment Batching Machine |
4 |
2 |
8 |
Optional |
2.2 |
1 |
2.2 |
|||
17 |

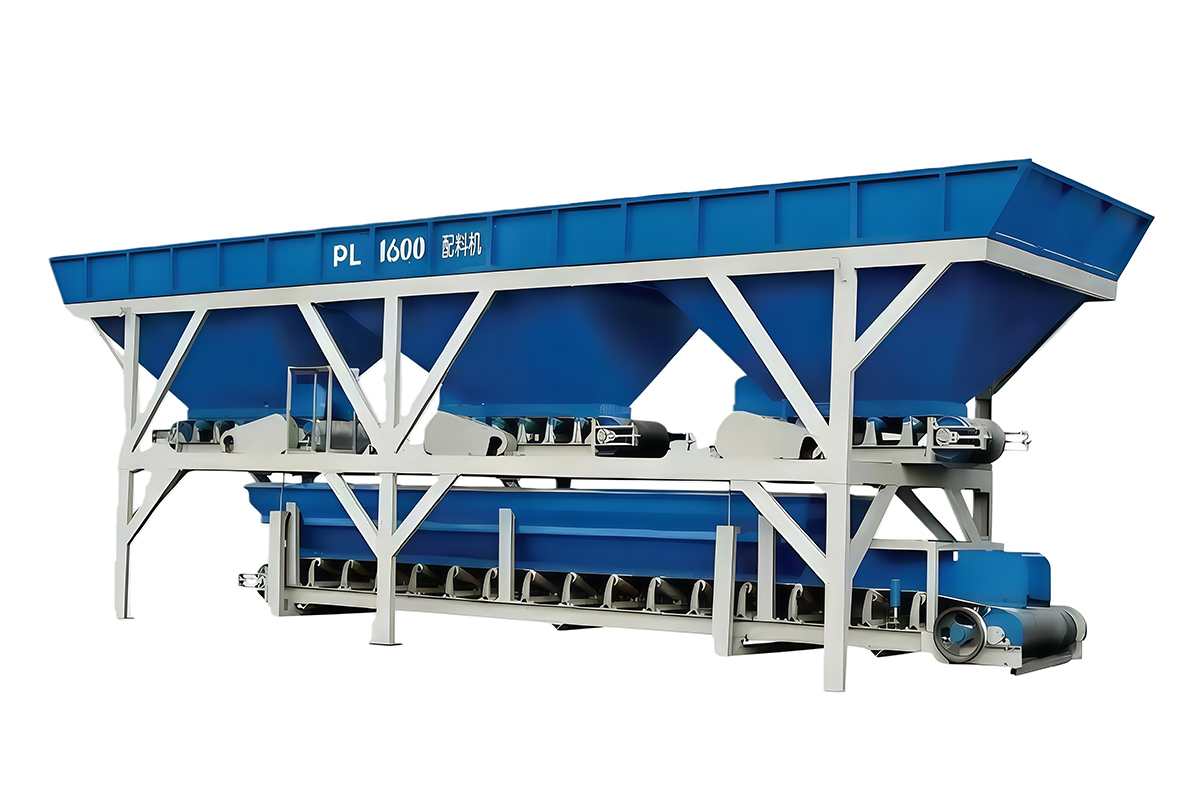

PLD Three-Compartment Batching Machine |
4 |
3 |
12 |
Optional |
2.2 |
1 |
2.2 |
|||
10-15 Main Technical Parameters
Overall Dimension |
5900x2200x2600mm |
Equipment Weight |
10500KG |
Overall Power |
48.9KW |
Molding Cycle |
12-15s |
Pallet Size |
1150x900mm |
Mode of vibration |
Vibration Pressurization |
Block Name & Size
| Block Name | Block Sample | Size(mm) | Qty/mould |
|---|---|---|---|
| Hollow Block |  |
400x200x200 | 10pcs |
| Solid Block |  |
240x115x50 | 54pcs |
| Grass Brick |  |
240x190x80 | 15pcs |
